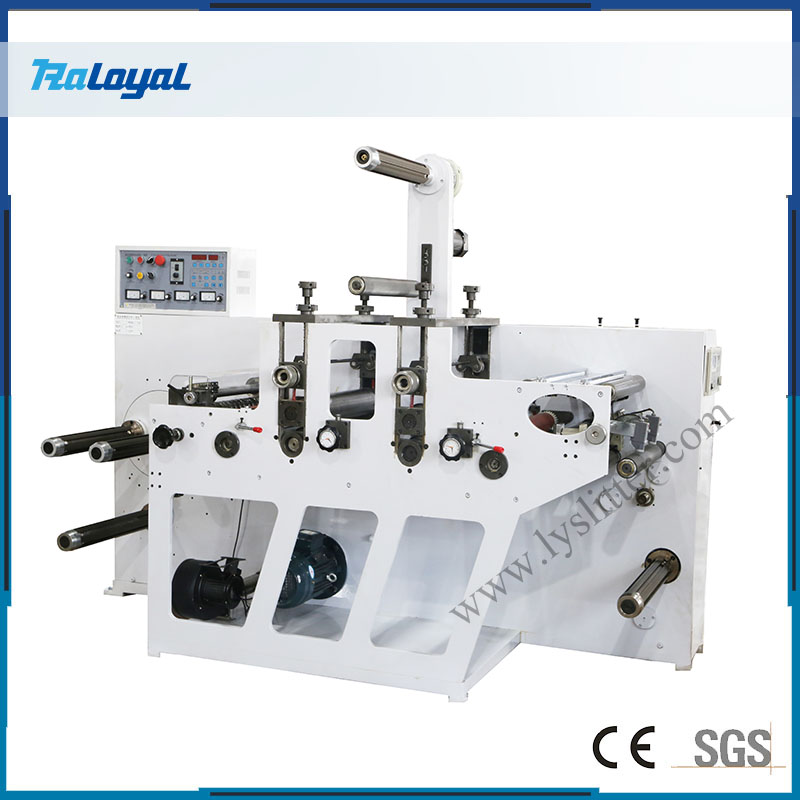

HC-320A Blank Label Turret Slitter Rotary Die Cutter
Quantité : 100 sets / Prix : USD2206-USD73529
This rotary label die cutting machine is an ideal machine for the adhesive label, paper roll slitting.
Application
This rotary die cutting machines with longitudinal cutting is the most ideal machine for slitting blank label, Wave Shape Price Labels and etc.
The turret slitting label machine has other functions such as automatic inspection, automatic correcting, automatic counter, etc, can be finished in once process.
Blank Labels Die Cutting Machine Application Industry:
√ Food
√ Beverage
√ Cosmetic & Personal Care
√ Pharmaceuticals
√ Automotive & Mechanical
√ Parts Packaging
√ Chemicals
√ Transportation
√ Others (Logistic, Entertainment, Security etc.)
Our Difference
Turret rewinder
1”/1.5”/3” core available
Min waste: 1mm
Most competitive price
Advantages of Drug Labels Die Slitting Cutting Machine
1. Synchronous belt transmission can assure the noise much smaller.
2. 1 inch, 1.5 inch, 3 inch tube all can be used for this type of machine.
3. Air shaft rewinding.
4. Taper tension controller adopted for more friendly tension control of unwinding and rewinding unit.
5. Photocell correction is used in EPC/LPC.
Technical Parameter of Pharmacy Labels Die Cutting Machine:
|
Machine model |
HC-320A |
HC-420A |
|
Slitting speed |
120m/min |
|
|
Die-cutting speed |
80m/min |
|
|
Max unwinding width |
320mm |
420mm |
|
Rewinding roller diameter(2 rollers) |
φ220mm |
|
|
Rewinding roller diameter (1 roller) |
φ480mm |
|
|
Unwinding roller diameter |
φ550mm |
|
|
Machine precision |
±0.15mm |
|
|
Voltage |
220V±10% |
|
|
Main motor power |
2.5kw |
|
|
Machine weight |
500kg |
600kg |
|
Machine overall dimension |
1600*1100*1700mm |
1600*1200*1700mm |
Frequently Asked Questions
1.What the rewinding shaft size I can use? Our turret rewinders have use different sizes of core.
1”, 1.5”, 3”, different sizes shaft can be used interchangeably.
2. Can I make different size of label, how can I do it?
It can, only offer use your label design, we can make the knife according to it.
3. What about delivery time of 4 spindle turret rewinder?
Standard models only need 7work days.
Now the price of slitter die is reasonable, if you have needs to buy high quality label slitting rewinding machine, please contact us.
Raloyal is an enterprise with a long history which specializes in producers of slitting machine, die cutting machine, cross cutting machine, inspection machine, paper tube cutting machine and etc. for electronic protection film, optical film, label, paper, PE/PP/PVC film material processing.
