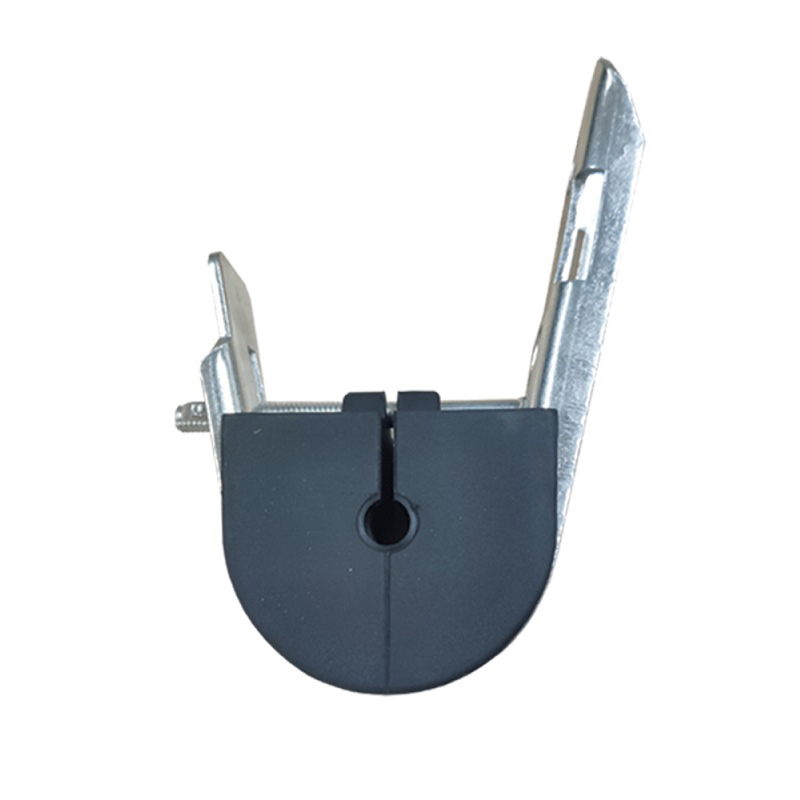

HC Tension Cable Clamp
HC Tension clamp, use for ADSS cable, and choose the type according to the diameter of ADSS cable.
Hook tension wire clamp is designed to provide a suspension for Ø8 to 20mm aerial ADSS cables at intermediate poles on cable routes with angle < 20° on access networks (spans up to 100m). The tension clamp for adss cable consists of a galvanized steel J Hook, a neoprene sleeve and tightening screw.
As one of the most experienced and professional tension cable clamp manufactuer/supplier, TUOLIMA exports its tension clamp for aerial cable all over the world. With the reliable quality, TUOLIMA ADSS tension clamp has won its reputation all over the world. If you want to find a trustworthy adss cable tension clamp supplier, TUOLIMA is your perfect choice. If you are interested in our adss cable clamps, you can check the details below. Or you can contact us for more information about TUOLIMA bolt type optic cabl tension clamp directly.
Details of HC Tension Cable Clamp for ADSS/Fiber Cable
The available fiber diameter range is: 5-8mm / 8-12mm / 10-15mm / 15-20mm;
Front and back ports for fiber optic cable;
stainless steel and TPR soft material.
Specification of HC Tension Cable Clamp
MODEL |
Cable Diameter |
Material |
MBL |
Weight |
HC |
5-8mm |
Plastic and stainless steel |
4kN |
194g |
HC |
8-12mm |
Plastic and stainless steel |
4kN |
160g |
HC |
10-15mm |
Plastic and stainless steel |
4kN |
/ |
HC |
15-20mm |
Plastic and stainless steel |
4kN |
/ |
Packing and Comments of HC Tension Cable Clamp for ADSS/Fiber Cable
Package contents |
HC customized package 200pcs/CTN |
Package dimensions (W*H*D) |
34.5*32.5*47cm |
Package material |
Standard carton for sea shipping or air express |
Weight |
25kgs |
