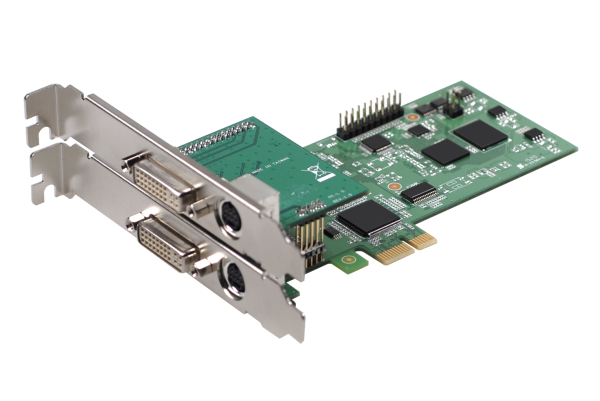

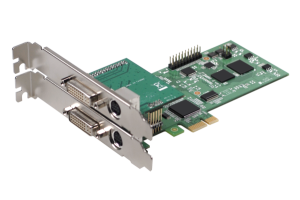

HD Video Capture Cards Loop-Through Output HDMI,DVI,VGA, Components,AV, S-Video

Model: 542N1-L HDVProduct FeaturesCapturing HDMI,DVI,VGA, Components,AV, S-Video Simultaneous loop-through output HDMI,DVI,VGA, Components,AV, S-Video Resolution up to 1920x1200p@60 HzCapturing HDMI audio Supports HLS ,RTSP and RTMP streaming.Supports GPU accelerationSDK: VC++/.NET/VB/V4L2Product SpecificationsDimension135 × 68.9 (mm)Host InterfacePCIe x1 (Gen 2)Video Input interface1XDVI ,1XS-Video（1XComponents,1XAV, 1XS-Video through connector ）loop-throught output1XDVI ,1XS-Video（1XComponents,1XAV, 1XS-Video through connector ）Recording Video FormatH.264 (Software Compression)Recording Video Resolution(Dual Steams)1920×1080p@60/50fps1920×1080p@30/25/24fps1920×1080i@60/50fps128 0×720p@60/50fps1024×768p@60fps 800×600p@60fps640×480p@60fps720×480p@60fps720×576p@50fps720×480i@60fps 720×576i@50fpsOS SupportIt supports the following operating systems (x86 and x64 versions)Windows® XP ProfessionalWindows® Server 2003Windows Vista®,Windows® Server 2008Windows® 7Windows® 8Windows® 8.1Windows® 10Windows® Server 2008 R2Linux 2.6.14 or HigherAudio Input2 x RCA (Audio L/R through component cable)Audio Output2 x RCA (Audio L/R through component cable)(Loop-through; Optional)Audio FormatStereo / 16-Bit / 48000HzWatchDogSupportPower Consumption<= 15WOperating Temperature0-50 °CStorage Temperature-20-70 °CRelative Humidity5%-90% url: http://www.tchdvideo.com
