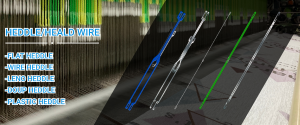

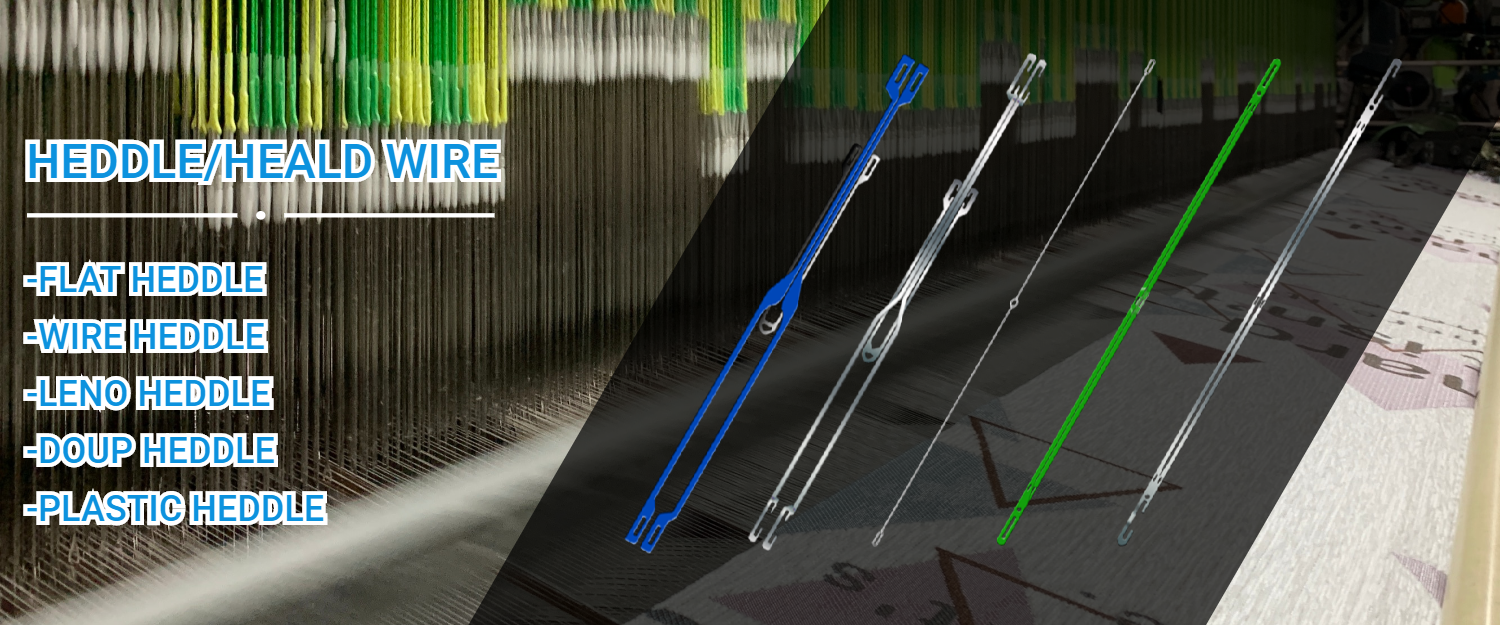

Heald Wire
Quantité : 150 sets/m Prix : USD $1000~$30000
Heald wires are used to lead the warp yarns to move in lifting motion, forming a weaving shed for weft yarns to be brought in.
Our offered heald wire is well-manufactured by using of superior quality stainless steel. The edges of our steel wire heald are well polished and available with thread eye for impeccable weaving machine for home of fine and low twist wrap yarn. Moreover, our range of heald wires is suitable for all types of mechanical and electrical wrap stop motions.
Also, we check these products upon various parameters so as to avoid any trouble from customer side. Different specifications weaving healds are available to meet the clients' specific needs.
Specification of closed type flat steel healds
|
Type |
Cross Section |
Length |
|
|
Kind |
Shape |
Width*Thickness(mm) |
Distance between end loops |
|
Closed type |
Simplex (S) |
2.20*0.30 |
280 330 300 380 302 420
|
|
2.34*0.35 |
|||
|
Douplex(D) |
2.50*0.35 |
||
|
2.60*0.40 |
|||
|
Unilateral Douplex (P) |
2.80*0.40 |
||
|
2.50*0.30 |
|||
|
Type of thread eye |
Type of end loop |
||||
|
Position of the thread eye |
Code |
Size |
Code |
Upper loop |
Lower loop |
|
U above center C in the center
|
1 |
5.0*1.0 |
-1 -2 -3 -4 |
|
|
|
2 |
5.5*1.2 |
||||
|
3 |
6.0*1.5 |
||||
|
4 |
6.5*1.8 |
||||
|
5 |
7.0*2.0 |
||||
Schematic diagram of mail-eye for closed flat steel healds
Closed type flat steel healds
Specification of open type flat steel healds
|
Type |
Cross Section |
Length |
|
|
Kind |
Shape |
Width*Thickness(mm) |
Distance between end loops |
|
Oopentype |
Simplex (J) Douplex(JP) Simplex (C) Douplex (CP) |
5.50*0.23 |
280 382 302 407 331 432 356
|
|
5.50*0.25 |
|||
|
5.50*0.30 |
|||
|
5.50*0.38 |
|||
|
5.50*0.40 |
|||
|
|
|||
|
Type ofthread eye |
Type of end loop |
||||
|
Position of the thread eye |
Code |
Size |
Code |
Upper loop |
Lower loop |
|
U above center C in the center
|
2 |
5.5*1.2 |
-5 -6 -7
|
|
|
|
4 |
6.5*1.8 |
||||
|
5 |
8.0*2.5 |
||||
|
6 |
8.0*3.8 |
||||
|
|
|
||||
Schematic diagram of mail-eye for open flat steel healds
Open type flat steel healds
Personne à contacter : wuwu lisa, +86 18058173515
