Heavy capacity 20t portal crane outdoor high temperature resistance
Détails
Chine (Rép. pop) Bâtiment
Bâtiment

Heavy capacity 20t portal crane outdoor high temperature resistance

Quantité : 1   Prix : 100,00 €

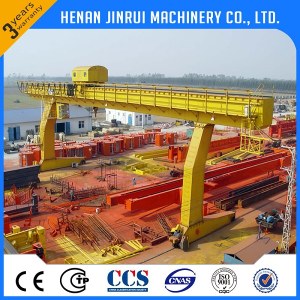

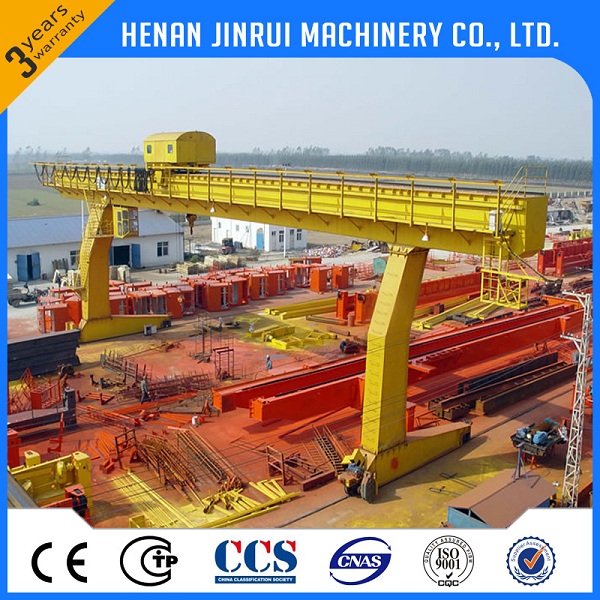

Single Girder Gantry Crane

L type single girder gantry crane with electric hoist or trolley is generally used in outdoor freight yard or along railway lines for loading, unloading, lifting and transferring materials. With only one supporting leg at each side, it can take advantage of the space under the main beam to increase the working area. It suits for loading the large size materials like iron or steel blocks, cylinders and so on.

Parameters feature

L type single girder gantry crane with electric hoist:
Lifting capacity: 5~10t
Span: 16-28m
Lifting height: 6/9m
Lifting speed: 8 or 0.8m/min
Traveling speed: 20 or 30m/min
Work duty: A3-A5
Work temperature: -20°C-+40°C
Control method: Pendant line with pressing button, remote control or cabin control

L type single girder gantry crane with electric trolley:
Lifting capacity: 5~32t
Span: 18-35m
Max. lifting height: 16m
Lifting speed: 8 or 0.8m/min
Traveling speed: 20 or 30m/min
Work duty: A5
Work temperature: -20°C-+40°C
Control method: remote control or cabin control

Localisation : Jingu Square, Pingyuan Road, Hongqi District, Xinxiang, Henan, China (Mainland), 453000 Henan ,
Personne à contacter : Kris Wang , 0086 0373 7181222
