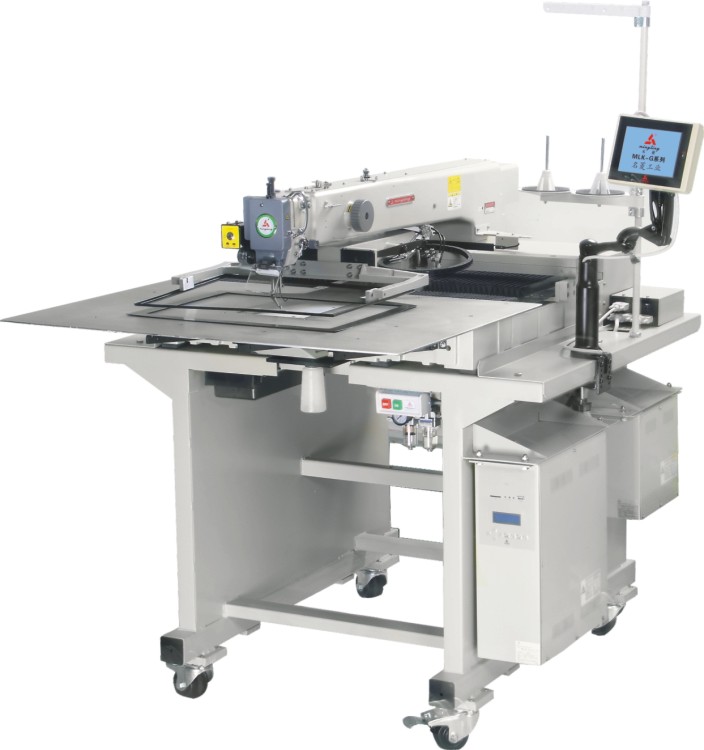

Heavy Duty Industrial Pattern Sewing Machine

Mingling Industrial is one of the top level heavy duty industrial pattern sewing machine manufacturers and suppliers China with one of the famous brands, and also a professional company, welcome to buy discount, cheap, best, low price and high-quality heavy duty pattern sewing machine from us.This model Sewing is 400*300mm and it is apply for big size shoe upper stitching,tablet cover stitching,diary cover stitching etc.Is has high force ,is is good for thick material stitching.The pressure foot mechanism and feed mechanism rigidity together with the latest feed control, realize beautiful stitches. The increased power of 750w direct-drive servo motor provide the industry top-class force. Low speed sewing (200rpm) at the start of sewing and thread cutting which was conventionally iffficult to carry out, now it can be performed easily.Items/ModelMLK-G2010RMLK-G3020RMLK-G4030RMLK-G6030RMLK-G6050RML K-G10050RMLK-H3020RMLK-H3020RR MLK-H6050RRStitching StyleSingle Needle LockstitchHook TypeFull Rotation HookDouble Large HookSemi Large HookRotary Large HookSewing AREA200*100mm300*200mm400*300mm600*300mm600*500mm1000*500mm300*200mm60 0*500mmMaximum Sewing Speed2500rpm2000rpm3000rpm2000rpmFeeding MethodIntermittent/Continuous (switchover method)Stitching Pitch0.1mm-20.0mm0.1mm to 0.12.5mm0.1 to 20.0mm (fixed position .01mmMaximum No.of Stitches20,000 stitches/pattern50,000 stitches/pattern20,000 stitches/patternMaximum no. of memory Pattern520 patterns (internal memories)Unlimited520 pattern internal memoryEnlargement/Reduction functionX/Y10%-200% for bothx and y axes( variable in 0.1% steps)MemoryUSB flash memory (not including with sewing machine) FDD can be also connectedMachine Weight147kg168kg420kg440kg470kg500kg168.5kg168.5kg470kgClamp holder30mm35mm30mmChuck DeviceSpecial SpecificationWork holder methodPneumaticPressure foot lift storke15mm - 18mmAutomatic adjustment (0-8mm thickness)15mm (max 18mm) two level adjustmentPrussure foot stroke4-10mm0-15mm4-10mmMain motorMing Ling 750w direct servo motorApplicable needleDPx17#18#19 (standard)DPx17#18 (Standard)Operation panel5.7" LCD touch panelMachine dimension120*86*123cm120*106*123cm108*157*123cm135*157*123cm138*185*12 3cm210*185*123cm120*106*123mm1 20*106*123mm138*185*123mmPower220v-240v url: http://www.mingling1996.com
