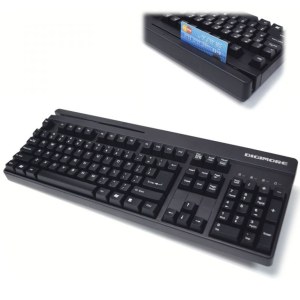

Heavy-Duty Keyboard with Magnetic Stripe Card Reader (KB-6868-MSR)

Digimore POS Keyboard, KB-6868-MSR, features an enhanced keyboard layout with a built-in 3 tracks magnetic stripe reader for use in banking Point of Sale application and secure Credit Cards. This full-sized keyboard is designed for any desktop, kiosk, office, or warehouse. Antimicrobial ABS material (option) is also available upon requested.

KEYBOARD SPECIFICATION

Key Number

104/105/ 109 Keys (US/ EU/JP)

Key Switch

Membrane with 20 million life cycle time

Key Force/ Traveling Distance

50 +/- 7 gm; 4 +/- 0.5 mm

Key Caps

Ergonomic keycap design with 5 different height

Input Power

5 VDC, 100mA

Interface

USB 1.1 version; (PS/2 mini-DIN, optional)

Led Indicator

4 LEDs, Num Lock, Caps Lock, Scroll Lock, MSR Read/ Write

MAGNETIC STRIPE CARD READER SPECIFICATION

Number of Tracks

Track 1 & 2 or Track 1, 2 & 3

Compatibility

ISO 7810 and 7811-1 through -6 cards/ Reads AAMVA driver license cards

Communications

Decoded track data sent through keyboard communication cable

Output Data Formatting

Default card data output format or customized data output format is programmable through PC configuration utility. (please refer to user's manual)

Operating Life

1,000,000 card swipes

Card Speed Range

3 to 60 IPS (inches per second)

Audio Beeper

Indicates error free card data reading

Options - Encryption key

Also provide key Injection, Production Injection and TG3 Key Injection

OTHERS

Environment

Operating Tem.

0 ~ 50 degrees Celsius (10 ~ 95% RH, 25 degree Celsius)

Storage Tem.

-10 ~ 65 degree Celsius (5% ~ 90% RH, 25 degree Celsius)

Physical

Dimension

450.17 (L) x 171 (W) x 37.29 (H)

Box/ Weight

500 (L) x 220 (W) x 55 (H) mm / 1.3 Kg (G.W.)

Packing Information

QT'Y / Carton

5 pcs/ctn; 1.39 cuft/ctn; 8.5 kgs (G.W.);

Carton Size

51.5 x 30.5 x 25 cm

Options

Antimicrobial ABS material; compliance with JIS Z2801 standard

Localisation : 10 Fl., No. 61, Yan-Ping S. Rd., 100 Taipei,
Personne à contacter : Sam Yeh, 886 2 2311 3299
