Heavy Duty Leveling
levelling feet,as one of our initial OEM capability,we can offer widely level elements for machine and equipment customers,we can supply from wide range of styles and sizes of stock.

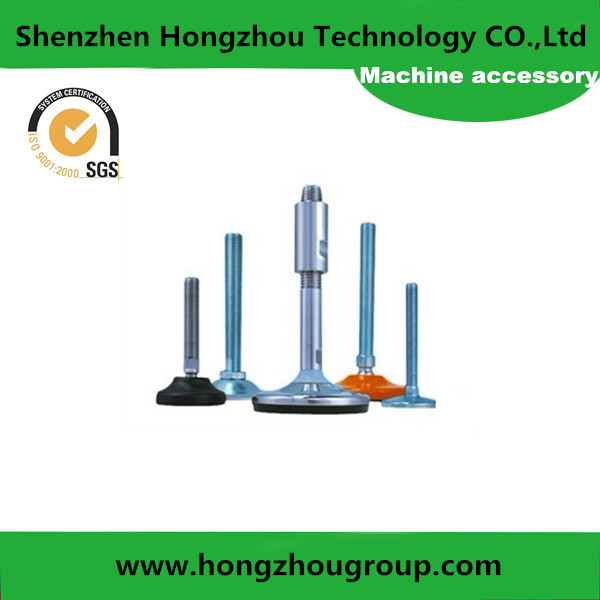

Levelling feet series:
Articulation stud feet
Fixed stud feet
Hygienic stainless steel feet/machine mounts
Mild steel plated feet/machine mounts
Anti-vibration mounts
Furniture feet
Heavy duty leveling mounts
Material:
Base: Reinforced nylon, or mild steel plated, or stainless steel as your request.
Stud: Mild steel plated, or stainless steel as your request
Application: Widely used in apparatus, machine tools, conveyor systems, machine and heavy equipment.
Specials: Customized specials can be produced, and your drawings or designs are welcomed
| Model | Chassis Diameter | Tooth Length | Screw Diameter | Locating Hole Diameter | Base Height | Cushion Reveal Thickness | Max. Static Load |
| A | 11 | M | C | B | s | kg | |
| CN-AF-501050 | 50 | 50 | 10 | 35.5 | 20 | 1.5 | 500 |
| CN-AF-5010100 | 50 | 100 | 10 | 35.5 | 20 | 1.5 | 500 |
| CN-AF-501250 | 50 | 50 | 12 | 35.5 | 20 | 1.5 | 500 |
| CN-AF-5012100 | 50 | 100 | 12 | 35.5 | 20 | 1.5 | 500 |
| CN-AF-601650 | 60 | 50 | 16 | 47 | 24 | 1.5 | 800 |
| CN-AF-6016100 | 60 | 100 | 16 | 47 | 24 | 1.5 | 1000 |
| CN-AF-602050 | 60 | 50 | 20 | 47 | 24 | 1.5 | 800 |
| CN-AF-6020100 | 60 | 100 | 20 | 47 | 24 | 1.5 | 800 |
| CN-AF-801050 | 80 | 50 | 10 | 32.5 | 18.5 | 1.5 | 600 |
| CN-AF-8010100 | 80 | 100 | 10 | 32.5 | 18.5 | 1.5 | 600 |
| CN-AF-801250 | 80 | 50 | 12 | 32.5 | 18.5 | 1.5 | 600 |
| CN-AF-8012100 | 80 | 100 | 23 | 32.5 | 18.5 | 1.5 | 600 |
| CN-AF-801650 | 80 | 50 | 16 | 45.5 | 23 | 1.5 | 1200 |
| CN-AF-8016100 | 80 | 100 | 16 | 45.5 | 23 | 1.5 | 1200 |
| CN-AF-802050 | 80 | 50 | 20 | 45.5 | 23 | 1.5 | 1200 |
| CN-AF-8020100 | 80 | 100 | 20 | 45.5 | 23 | 1.5 | 1200 |
| CN-AF-1001650 | 100 | 50 | 16 | 48.5 | 30 | 1.5 | 1800 |
| CN-AF-10016100 | 100 | 100 | 16 | 48.5 | 30 | 1.5 | 1800 |
| CN-AF-1002050 | 100 | 50 | 20 | 48.5 | 30 | 1.5 | 1800 |
| CN-AF-10020100 | 100 | 100 | 20 | 48.5 | 30 | 1.5 | 1800 |
| Plastic | Add nylon | ||||||
| Screw | Carbon steel(or stainless steel) | ||||||
| Screw thread length | Other sizes can be made to order besides what listed above. | ||||||
| Surface treatment |
Chromeplate, nickelplate... |
||||||
