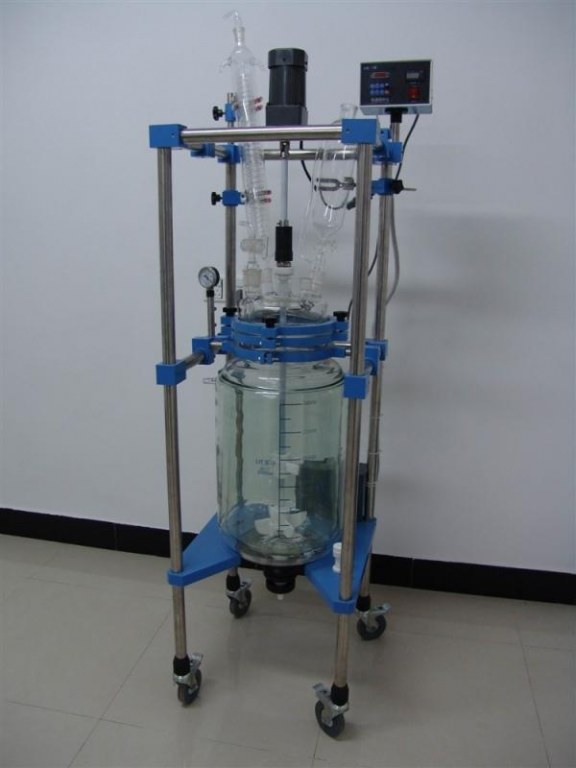

HEB-50L Jacketed Glass Reactor
Quantité : 1 SET Prix : US $ 1-10/ Set
Detailed Product Description
Cylindrical glass reactor is idea device in synthetic chemical,biological parmaceutical,scientifical institute,etc.
Circulation liquid of hot, cold or cryogenic can be filled into the jacket of reactor. Substance reacts by stirring under normal or negative pressure in aieproof glass container. Reaction process can be watched clearly through crystal reaction flask. Jacket Glass Reactor is ideal equipment in library experiment or medium-production in moden biology and pharmcy, and is also applied in synthesizing materials in fine chemical industry.
Features in Design:
1. Integrated jacket reaction flask has big caliber with good seal and high strength.
2. Professional PTFE cover supports high speed stirring in vacuum.
3. Three standard mouths can be used for umlti-purpose according to customer needs. Standard fitting are chatging cork, thermometer tube, and reflux condenser. (Customization available for special needs)
4. More designs on safe and easy operation are applied on models of 20L and above
Technology parameters
|
Type |
HEB-50L |
|
Reaction flask |
50L |
|
Stirring power |
250 W or 370w |
|
Rotation speed |
50-900rpm |
|
Torgue |
22000g.cm |
|
Electrical Requirement |
220V 50Hz |
|
Max speed |
900rpm |
|
Flask Necks |
5 pcs or 6 pcs |
|
Inside's diameter |
355mm |
|
outside's diameter |
400mm |
|
Overall dimension |
100x150x240cm |
|
Basic standard components |
||
|
NO |
Model |
Description |
|
1 |
HEB50-10 |
Condenser |
|
2 |
HEB50-15 |
Connection Joint |
|
3 |
HEB50-11 |
Electric Stirrer Motor(Proof-Explosive 50-900rpm Power: 370W |
|
4 |
HEB13 |
Pressure Meter Max pressure 0.098Mpa |
|
5 |
HEB-07-12 |
Receiving Flask(0.5L-5L Optional) |
|
6 |
HEB50-99-16 |
5or6-Neck Liddiameter for Middle: 60,Left: 40,Right: 50,Back: 34mm,Front: 29mm |
|
7 |
HEB50-FC-307 |
Frequency-Convertor for Digital Display |
|
8 |
HEB-BP-502 |
Beaded Pipe Coupling(outlet) |
|
9 |
HEB-BP-503 |
Beaded Pipe Coupling(Inlet) |
|
10 |
HEB50-JR-111 |
50L Jacketed Vessel |
|
11 |
HEB-ST-101 |
Stirrer Shaft Stainless, Teflon Agitator |
|
12 |
HEB-RH-210 |
Teflon Support Ring“O” |
|
13 |
HEB-DS-158 |
Discharging Valve Not Existing Materials |
|
14 |
HEB-LC-199 |
Heavy Duty Lockable Casters |
|
15 |
HEB-VM-201 |
Vacuum Mouth |
|
16 |
HEB-SF-08 |
Support Frame,Stainless |
|
17 |
HEB-CP-0 |
Constant Pressure Funnel |
|
18 |
HEB-PTFE |
PTFE cover for big mouth |
|
19 |
HEB-GV |
Glass Valve |
|
20 |
HEB-TP |
Bushing of temperature meter |
|
21 |
HEB-FS |
various kind of clamps |
