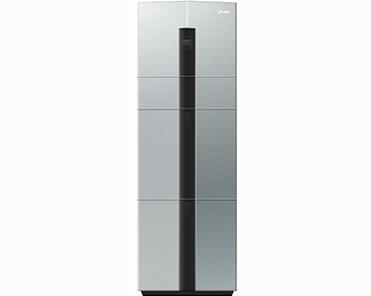

HEC-S 5000D Residential Energy Storage System
Prix : 100000-5000000
Hiconics's HEC-S 5000D is an Intelligent all-in-one home energy storage system (with LFP battery), especially for Europe. Our HEC-S 5000D model has the following strengths: Safety- CATL LFP Battery, IP65; Simple- Plug and play, 30 min quick installation; Interconnection- Global cloud platform & Mobile APP.
Technical Parameters of HEC-S 5000D Residential Storage System
|
Battery Model |
HEC-S 5K |
||
|
Physical |
Operation |
||
|
Battery type |
LFP (LiFePO4) |
Max. Charge/Discharge Current |
50A/80A |
|
System Weight |
54KG |
Rated DC power |
4096W |
|
Dimension (W x D x H) |
540*490*255 |
Max. Charge/Discharge Power |
2825W/4096W |
|
IP Protection |
IP65 |
Operating Temperature Range |
0 to 50℃ charging |
|
Warranty |
5 Year Product Warranty |
Humidity |
0~95% (No condensation) |
|
Electrical |
|
BMS |
|
|
Energy Capacity |
5.12kwh |
Modules Connection |
Max. 4 |
|
Usable Capacity |
4.6kwh |
Capacity |
100-400Ah |
|
Depth of Discharge (DoD) |
90% |
Power Consumption |
<2W</span> |
|
Nominal Voltage |
51.2V |
Communication |
CAN & RS485 |
|
DC Circuit Breaker |
125A |
Monitoring Parameters |
System voltage, current, cell voltage, cell |
|
Operating Voltage Range |
44.8-56.5V |
Certificate |
|
|
Internal Resistance |
|
||
|
Cycle Life |
10000cycle |
Safety(Cell) |
Pack: IEC/EN 62619; UN38.3 |
|
Hybrid Inverter Model |
HEC-S 5000D |
|
PV String Input |
|
|
Max. DC Voltage |
580V |
|
Nominal Voltage |
400V |
|
MPPT Voltage Range |
80V-56V |
|
Start Voltage |
130V |
|
Number of MPP Tracker |
2 |
|
Strings Per MPP Tracker |
1 |
|
Max. Input Current Per MPPT |
15A |
|
Max. Short-circuit Current Per MPPT |
18A |
|
AC Output (Grid) |
|
|
Nominal AC Output Power |
5000W |
|
Max. AC Apparent Power |
7360VA (from grid) |
|
Max. AC Output Power |
5000W 1 |
|
Nominal AC Voltage |
230Vac |
|
AC Grid Frequency Range |
50 / 60Hz±5Hz |
More Options
As one of variable frequency drive manufacturers, Hiconics technical team will provide you with professional and timely pre-sales and after-sales service ensuring that your project carry our smoothly.
As a professional inverter drive factory, we provide residential solar battery backup, residential solar battery storage, house power backup systems ,etc...
