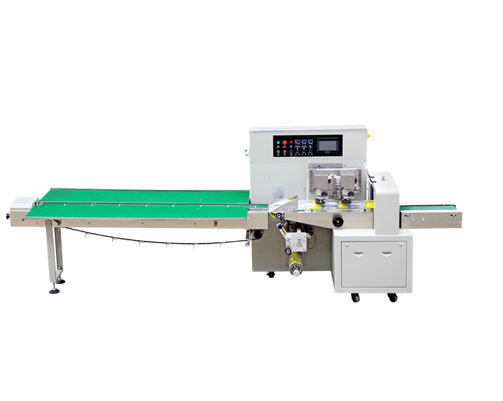

HFFS HARDWARE PILLOW PACKING MACHINE 350X
GN-ZB-350XSF pillow packaging machine for the hardware industry is a kind of automatic induction length identification hardware packing machine independently developed by guonuo company, which is specially designed for all kinds of aluminum materials, guide rails, hardware accessories, hoses, bathroom shower , PVC , and other products with different lengths.
HFFS hardware packaging machine 350X TECHNICAL PARAMETERS
|
Machine Model |
GN-ZB-350XSF |
|
Film Width |
Max 340mm |
|
Bag Length |
Suitable different lengths according to the product |
|
Bag Width |
50-150mm |
|
Product Height |
Max 55mm |
|
Film Roll Diameter |
Max 320mm |
|
Packing Speed |
10-25m/min |
|
Power Supply |
220Vac 56/60Hz 2.4KW |
|
Machine Dimension |
L4000 × W760 × H1370mm |
|
Gross Weight |
550Kg |
|
Remarks: The packaging film can be connected under the normal working state of the machine, saving time and high efficiency |
|
Hffs Hardware Pillow Packing Machine 350X Main Parts Configuration
|
Main Parts Configuration (In case of replacement, the same grade shall prevail) |
||
|
No. |
Components |
Brand |
|
1 |
PLC |
PANASONIC JAPAN |
|
2 |
Inverter |
PANASONIC JAPAN / SHIHLIN TAIWAN |
|
3 |
Touch Screen |
XINJIE/MCGS CHINA |
|
4 |
Temperature Controller |
ALSET CHINA |
|
5 |
Photocell |
ALSET CHINA |
|
6 |
Encoder |
RONGDE CHINA |
|
7 |
Two Position Switch |
GLELE CHINA |
|
8 |
Proximity Switch |
ENVK TAIWAN |
|
9 |
Power |
MINGWEI TAIWAN |
|
10 |
Solid State Relay |
SCHNEIDER GERMANY |
|
11 |
Intermediate Relay |
OMRON JAPAN |
As a leading packing machine manufacturer in China, We provide hardware counting packing machine, sleeve wrapping machine and etc. For more information, please feel free to contact us!
