High-efficiency spiral classifier with reasonable price and good quality manufatured...
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

High-efficiency spiral classifier with reasonable price and good quality manufatured...

Quantité : variety   Prix : USD 3900~19000 / Set

Introduction :

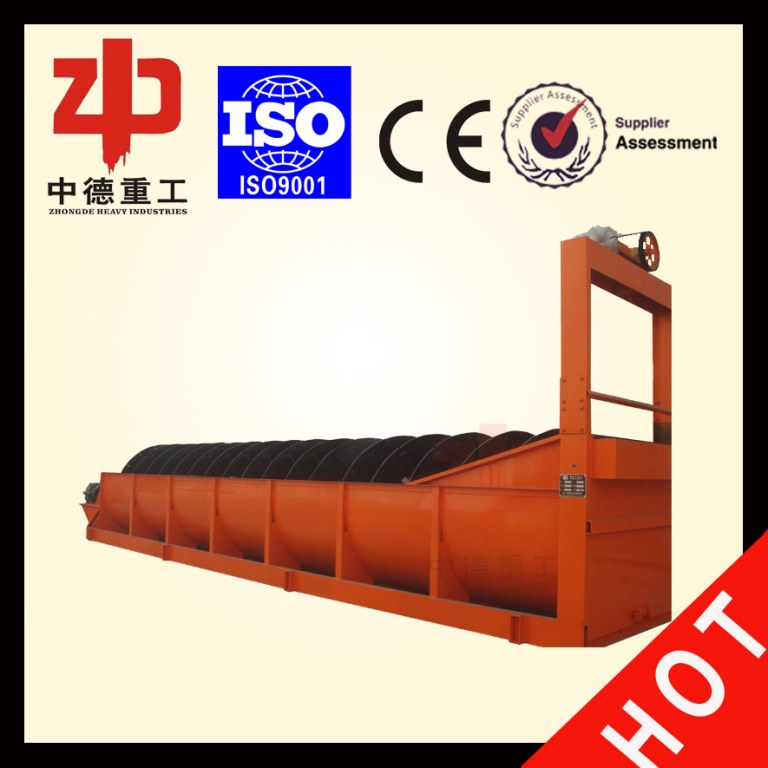

Spiral classifier,working with ore mills to form close circulation in the concentrating plant,whose classification process depends on the sedimentation velocity of the particles. Its external appearance is a rectangular oblique chute, whose bottom is semi-circular.There is 1 or 2 vertical axles installed in the chute, spiral blades are installed along the axle one after another.

Types:

According to the height of the surface of the liquid classification, the machines can be divided into high weir type and immersed weir type.

Technical parameters:

Model Spiral diameter(mm) Trough length(mm) Spiral rotation speed(r/min) Capacity: sand-return(t/d) Capacity: overflow(t/d) Motor power for driving(kw≤) Motor power for lifting(kw≤) Dimensions(Length*Width*Height)(mm≤)
FG-5 500 4500 8-12.5 135-210 32 1.1 - 5430*680*1480
FG-7 750 5500 6-10 340-570 65 3 - 6720*980*1820
FG-10 1000 6500 5-8 675-1080 110 5.5 - 7590*1240*2380
FC-10 1000 8400 5-8 675-1080 85 7.5 - 9600*1240*2680
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180*1570*3110
FC-12 1200 8400 4-6 1170-1870 120 7.5 2.2 10370*1540*3920
2FG-12 1200 6500 4-6 2340-3740 310 15 4.4 8230*2790*3110
2FC-12 1200 8400 4-6 2340-3740 240 15 4.4 10370*2790*3920
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410*1880*4080
FC-15 1500 10500 4-6 1830-2470 185 7.5 2.2 12670*1820*4890
2FG-15 1500 8300 4-6 2280-5480 470 15 4.4 10410*3390*4080
2FC-15 1500 10500 4-6 2280-5480 370 15 4.4 12670*3370*4890
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790*2530*4490
FC-20 2000 12900 3.6-5.5 3210-5940 320 11-15 3 15610*2530*5340
2FG-20 2000 8400 3.6-5.5 7780-11880 800 22-30 6 11000*4600*4490
2FC-20 2000 12900 3.6-5.5 7780-11880 640 22-30 6 15760*4600*5640
FG-24 2400 9130 3.67 6800 580 15 3 11650*2910*4970
FC-24 2400 14130 3.67 6800 490 18.5 4 16580*2930*7190
2FG-24 2400 9130 3.67 13600 1160 30 6 12170*5430*5690
2FC-24 2400 14130 3.67 13700 910 37 8 17710*5430*8000
2FG-30 3000 12500 3.2 23300 1785 40 8 16020*6640*6350
2FC-30 3000 14300 3.2 23300 1410 - - 17091*-*8680

DSC007564DSC08715QQ20120406113247DSC08672DSC04728DSC04731

Localisation : Luoxin Industrial Park of Luoyang city.CHINA, 471822 LUOYANG,
Personne à contacter : melody ma, +86 151 3997 9673
