High Efficiency Tangential Belt
As a reliable solar EVA film supplier, we supply ethylene-vinyl acetate film for customers, which is mainly used in outdoor building high transparent EVA film glass, civil projects, EVA solar film, enhanced film, sliding door film, photo film, special adhesive film for crystal photo album, special film for corner protection, EVA film for solar pane, safety coffee table laminated film, adhesive color film, PET back film, adhesive Divi film, adhesive and another transparent film, etc.

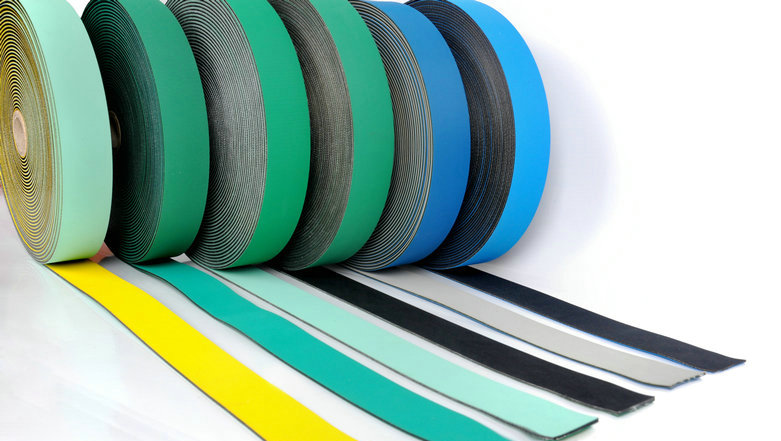

A high-speed tangential belt, also known as a polyamide-based high-speed drive belt, is a new type of flat belt, with high strength nylon core as the skeleton material. and as the tensile layer, and with high wear-resistant synthetic rubber as the surface friction layer. Using mature joint technology, so the operation is relatively stable. It is widely used in precision machine tools and high-speed transmission machinery.
Properties Of High-Efficiency Tangential Belt
- High efficiency and low elongation
- High fatigue resistance and flexibility
- Good anti-static property
- The friction coefficient of stability
Specification Of High-Efficiency Tangential Belt
|
Type |
Thickness（mm) |
Minimum pulley diameter (mm) |
Extend the tension by 1%(N/mm)
|
Maximum tension(N/mm) |
Core thickness(mm) |
|
DH-15 |
1.5 |
25 |
3.5 |
9 |
0.4 |
|
DH-18 |
1.8 |
35 |
4.5 |
12 |
0..6 |
|
DH-22 |
2.2 |
60 |
7.5 |
17 |
1.0 |
|
DH-24 |
2.4 |
70 |
9.0 |
23 |
1.0 |
|
DH-25 |
2.5 |
70 |
17.0 |
47 |
1.0 |
|
DH-30 |
3.0 |
100 |
11.0 |
25 |
1.2 |
|
DH-31 |
3.1 |
150 |
15.0 |
38 |
1.5 |
|
DH-34 |
3.4 |
150 |
15.0 |
38 |
1.5 |
|
DH-38 |
3.8 |
180 |
17.0 |
38 |
1.5 |
Application Of High-Efficiency Tangential Belt
High speed tangential belt is especially suitable for high speed transmission in textile industry, such as air suction, air spinning, carding machine, twister, stretch yarn machine, covering yarn machine, extra-long ring spinning, fancy twisting machine, knitting machine and so on.
