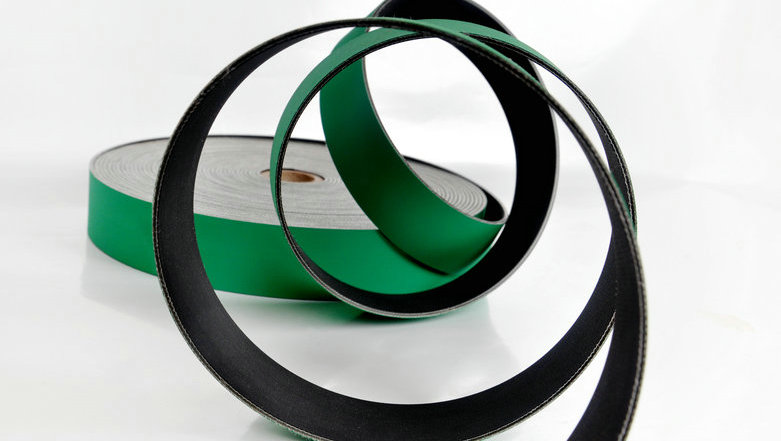

High Efficiency Tangential Belt
A high-speed tangential belt, also known as a polyamide-based high-speed drive belt, is a new type of flat belt, with high strength nylon core as the skeleton material. and as the tensile layer, and with high wear-resistant synthetic rubber as the surface friction layer. Using mature joint technology, so the operation is relatively stable. It is widely used in precision machine tools and high-speed transmission machinery.
Properties Of High-Efficiency Tangential Belt
High efficiency and low elongation
High fatigue resistance and flexibility
Good anti-static property
The friction coefficient of stability
Specification Of High-Efficiency Tangential Belt
|
Type |
Thickness（mm) |
Minimum pulley diameter (mm) |
Extend the tension by 1%(N/mm)
|
Maximum tension(N/mm) |
Core thickness(mm) |
|
DH-15 |
1.5 |
25 |
3.5 |
9 |
0.4 |
|
DH-18 |
1.8 |
35 |
4.5 |
12 |
0..6 |
|
DH-22 |
2.2 |
60 |
7.5 |
17 |
1.0 |
|
DH-24 |
2.4 |
70 |
9.0 |
23 |
1.0 |
|
DH-25 |
2.5 |
70 |
17.0 |
47 |
1.0 |
|
DH-30 |
3.0 |
100 |
11.0 |
25 |
1.2 |
|
DH-31 |
3.1 |
150 |
15.0 |
38 |
1.5 |
|
DH-34 |
3.4 |
150 |
15.0 |
38 |
1.5 |
|
DH-38 |
3.8 |
180 |
17.0 |
38 |
1.5 |
Application Of High-Efficiency Tangential Belt
High speed tangential belt is especially suitable for high speed transmission in textile industry, such as air suction, air spinning, carding machine, twister, stretch yarn machine, covering yarn machine, extra-long ring spinning, fancy twisting machine, knitting machine and so on.
If you want to find a reliable silicone rubber products manufacturer, please contact us, and we will be your best partner.
