High Level bashan Wire Spool Brass Hard EDM Brass Wire

Product Description

High Level bashan Wire Spool Brass Hard EDM Brass Wire

Brass EDM wire Φ0.1mm~0.3mm
Raw Material: Cuzn35, Cuzn37, H62
Wire Diameter: 0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm
Wire Condition: Hard, Semi-hard, Soft
Tensile Strength: 1000, 900, 500, 450 N/㎜²
Conductivity: Above 20% IACS
Spool Type: P3, P5, P10, P20, DIN125, DIN160, DIN200
Weight/Spool: 3~20kg
Packing: PE film sealed, moisture proof, quake proof, corrosion resistance.
Applications: Used on wire-cut machine of Agie, Charmilles, Sodick, Mitsubishi, Makino etc.

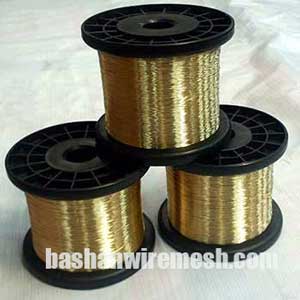

Products Show

Brass EDM wire can have different tensile strength to meet different equipment and applications.
This is achieved by a series of drawing (quenching) and heat treatment (annealing) processes.
Ordinary brass EDM wire tensile strength between 490-900N / mm2.

High Level bashan Wire Spool Brass Hard EDM Brass Wire Features:

¤ Various of wire core material can match demands
of different wire-cute machine.
¤ Heat treatment technology ensures tensile strength
stability, and prevents damage of wire.
¤ Superior verticality suitable for automatic threading.
¤ High drawing precision, fine ovality, low tolerance.
¤ Outstanding wire cutting speed compared, drop less powder.

Our Certifications

1)Passed ISO9001: 2008 quality certificate
2)Passed ISO/TS16949: 2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93

Our Company:

Xinxiang Bashan Aero Material Co., Ltd.In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan with the largest produce scale, strong technical support capabilities, products specifications are in complete, our company is the main drafting company who make the GB/T5330; GB/T6003.1; GJB5107; HB1862 and other 19 wire mesh technology standards in China. Remark: GB is the China standard. Bashan company acquired 24 metals wire & mesh patent such as (GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, national standard; GJB national military defense standard; HB, aviation standard.).
