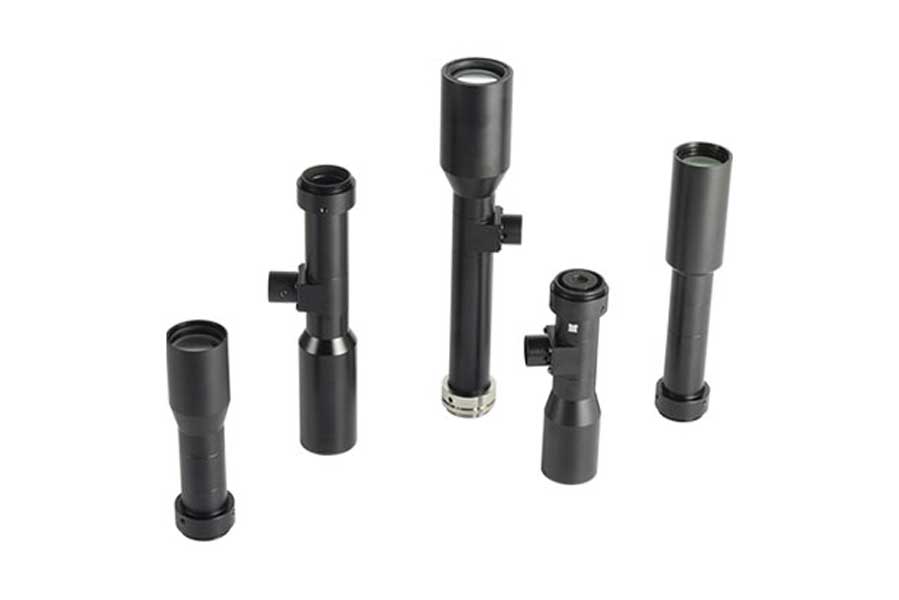

High Mag 1/2' Sensor Telecentric Lens Long Working Distance

High Mag 1/2' Sensor Telecentric Lens Working Distance

Standard resolution telecentric lens

Wide magnification range from 0.5X to 2X

Bi-telecentric design and object telecentric design

22 standard models of this double telecentric lens series support up to long working distance up to 300MM

Suitable for various applications, alignment, inspection, measurement, etc.

C mount

Model Optical Size Sensor Length (mm) Sensor Width (mm) Diagonal (mm) FOV Length (mm) FOV Width (mm) Lens Length (mm) Max Diameter (mm) Preview (pdf)

XF-T05X150 1/2' 6.4 4.8 8 12.8 9.6 104.4 29

XF-T05X150D 1/2' 6.4 4.8 8 12.8 9.6 107.5 29

XF-T05X200D 1/2' 6.4 4.8 8 12.8 9.6 91.9 29

XF-T05X200 1/2' 6.4 4.8 8 12.8 9.6 95 29

XF-T1X150 1/2' 6.4 4.8 8 6.4 4.8 140.2 22

XF-T1X150D 1/2' 6.4 4.8 8 6.4 4.8 143.3 22

XF-T1X250 1/2' 6.4 4.8 8 6.4 4.8 147.3 30

XF-T1X250D 1/2' 6.4 4.8 8 6.4 4.8 149.8 30

XF-T1X300 1/2' 6.4 4.8 8 6.4 4.8 220.7 30

XF-T1X300D 1/2' 6.4 4.8 8 6.4 4.8 223.2 30

XF-T1X420 1/3' 4.8 3.6 6 4.8 3.6 209.7 30

XF-T1X420D 1/3' 4.8 3.6 6 4.8 3.6 210.7 30

XF-T2X150B 1/2' 6.4 4.8 8 3.2 2.4 102.8 24

XF-T2X150BD 1/2' 6.4 4.8 8 3.2 2.4 102.8 24

XF-T2X200B 1/2' 6.4 4.8 8 3.2 2.4 122.6 26

XF-T2X200BD 1/2' 6.4 4.8 8 3.2 2.4 122.6 26

XF-T2X250 1/1.8' 7.2 5.3 9 3.6 2.7 189.1 30

XF-T2X250D 1/1.8' 7.2 5.3 9 3.6 2.7 191.7 30

XF-T2X300 1/2' 6.4 4.8 8 3.2 2.4 189.7 34

XF-T2X300D 1/2' 6.4 4.8 8 3.2 2.4 194.1 34

XF-MT1X200 2/3' 8.45 7.07 11 8.5 7.1 188.7 36

XF-MT1X200D 2/3' 8.45 7.07 11 8.5 7.1 191.9 36

Canrill is a professional optical lens manufacturer, we provide camera lens selection, line scan camera lens, line scan lens and etc. Want to know more? Please contact us.
