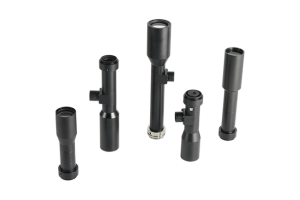

High Mag 1/2' Sensor Telecentric Long Working Distance Lens
Quantité : 8000pcs/mo Prix : 50usd-8000usd
High Mag 1/2' Sensor Telecentric Long Working Distance Lens
Standard resolution telecentric lens
Wide magnification range from 0.5X to 2X
Bi-telecentric design and object telecentric design
22 standard models of this double telecentric lens series support long telecentric lens working distance up to 300MM
Long telecentric lens working distance suitable for various applications, alignment, inspection, measurement, etc.
C mount
High Mag 1/2' Sensor Telecentric Long Working Distance Lens Specification
|
Model |
Optical Size |
Sensor Length (mm) |
Sensor Width (mm) |
Diagonal (mm) |
FOV Length (mm) |
FOV Width (mm) |
Lens Length (mm) |
Max Diameter (mm) |
|
XF-T05X150 |
1/2' |
6.4 |
4.8 |
8 |
12.8 |
9.6 |
104.4 |
29 |
|
XF-T05X150D |
1/2' |
6.4 |
4.8 |
8 |
12.8 |
9.6 |
107.5 |
29 |
|
XF-T05X200D |
1/2' |
6.4 |
4.8 |
8 |
12.8 |
9.6 |
91.9 |
29 |
|
XF-T05X200 |
1/2' |
6.4 |
4.8 |
8 |
12.8 |
9.6 |
95 |
29 |
|
XF-T1X150 |
1/2' |
6.4 |
4.8 |
8 |
6.4 |
4.8 |
140.2 |
22 |
|
XF-T1X150D |
1/2' |
6.4 |
4.8 |
8 |
6.4 |
4.8 |
143.3 |
22 |
|
XF-T1X250 |
1/2' |
6.4 |
4.8 |
8 |
6.4 |
4.8 |
147.3 |
30 |
|
XF-T1X250D |
1/2' |
6.4 |
4.8 |
8 |
6.4 |
4.8 |
149.8 |
30 |
|
XF-T1X300 |
1/2' |
6.4 |
4.8 |
8 |
6.4 |
4.8 |
220.7 |
30 |
|
XF-T1X300D |
1/2' |
6.4 |
4.8 |
8 |
6.4 |
4.8 |
223.2 |
30 |
|
XF-T1X420 |
1/3' |
4.8 |
3.6 |
6 |
4.8 |
3.6 |
209.7 |
30 |
|
XF-T1X420D |
1/3' |
4.8 |
3.6 |
6 |
4.8 |
3.6 |
210.7 |
30 |
|
XF-T2X150B |
1/2' |
6.4 |
4.8 |
8 |
3.2 |
2.4 |
102.8 |
24 |
|
XF-T2X150BD |
1/2' |
6.4 |
4.8 |
8 |
3.2 |
2.4 |
102.8 |
24 |
|
XF-T2X200B |
1/2' |
6.4 |
4.8 |
8 |
3.2 |
2.4 |
122.6 |
26 |
|
XF-T2X200BD |
1/2' |
6.4 |
4.8 |
8 |
3.2 |
2.4 |
122.6 |
26 |
|
XF-T2X250 |
1/1.8' |
7.2 |
5.3 |
9 |
3.6 |
2.7 |
189.1 |
30 |
|
XF-T2X250D |
1/1.8' |
7.2 |
5.3 |
9 |
3.6 |
2.7 |
191.7 |
30 |
|
XF-T2X300 |
1/2' |
6.4 |
4.8 |
8 |
3.2 |
2.4 |
189.7 |
34 |
|
XF-T2X300D |
1/2' |
6.4 |
4.8 |
8 |
3.2 |
2.4 |
194.1 |
34 |
|
XF-MT1X200 |
2/3' |
8.45 |
7.07 |
11 |
8.5 |
7.1 |
188.7 |
36 |
|
XF-MT1X200D |
2/3' |
8.45 |
7.07 |
11 |
8.5 |
7.1 |
191.9 |
36 |
As a china lens manufacturer, we will do our best to meet all the needs of customers.
