High-performance new type symons cone crusher for rock
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

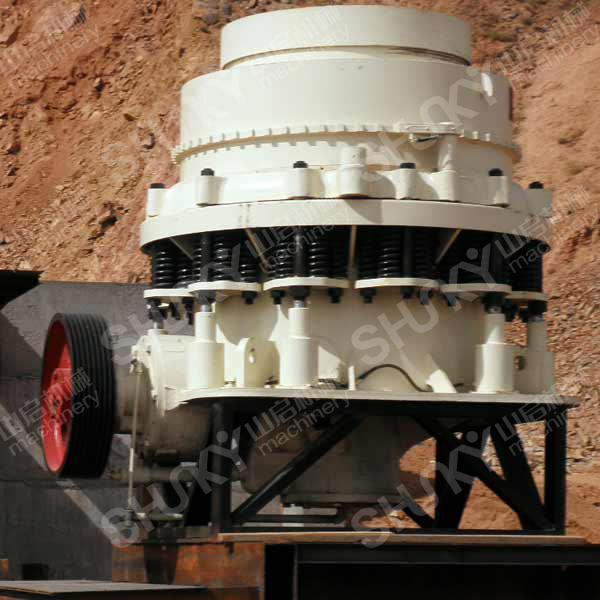

High-performance new type symons cone crusher for rock

Product Description
The Shunky symons cone crusher for rock is designed to crush high or medium hardness material, such as iron ore, copper ore, limestone, quartz, granite, etc. and is normally used as second or third crushing equipment in metallurgy, road construction, chemical engineering and so on. There are mainly standard type and short-head types according to different discharge size. This series offers the highest crushing efficiency and final product quality with the lowest cost so that they are well received by the customers.
Features
1.Reasonable design, low consumption;
2.Manifold crushing cavity, flexible application
3.Hydraulic pressure cavity clearing, high autoimmunization and less stop production and repairing time.
4.Spring insurance protection system
5.Laminated crushing, better finished product shape
6.Adoption of grease sealing increases the service life
7.High efficiency, high handling capacity
Technical Data
Specification Model Cavity type

Discharge size

(mm)

Max. feeding size

(mm)

Capacity

(T/H)

Motor power

(KW)

Dimension

(mm)

(L* W *H)
CS-75 CSC-75 Standard coarse type 13-38 175 59-163 75

2656

×

1636

×

2241
CSB-75 Standard medium type 9-22 102 45-91
CSD-75 Short head medium type 3-13 41 27-90
CS-110 CSC-110 Standard coarse type 13-38 160 70-215 110

2290

×

1530

×

2036
CSB-110 Standard medium type 10-25 115 55-135
CSD-110 Short head medium type 6-19 80 47-90
CS-130 CSC-130 Standard coarse type 13-38 180 105-220 132

2630

×

1760

×

2212
CSB-130 Standard medium type 10-25 130 72-170
CSD-130 Short head medium type 10-19 90 70-125
CS-160 CSC-160 Standard coarse type 16-51 200 135-350 160

2860

×

2070

×

2623
CSB-160 Standard medium type 13-25 150 105-180
CSD-160 Short head medium type 10-19 102 80-140
CS-200 CSC-200 Standard coarse type 19-51 215 200-440 200

2830

×

2200

×

2783
CSB-200 Standard medium type 16-25 160 160-230
CSD-200 Short head medium type 13-22 115 150-240
CS-220 CSC-220 Standard coarse type 19-64 235 230-570 220

3360

×

2650

×

3050
CSB-220 Standard medium type 19-38 175 215-330
CSD-220 Short head medium type 13-25 130 180-285
CS-240 CSC-240 Standard coarse type 22-64 267 330-725 250

3580

×

2860

×

3680
CSB-240 Standard medium type 16-25 203 240-330
CSD-240 Short head medium type 10-19 140 190-330
CS-360 CSC-360 Standard coarse type 25-76 303 608-99 360

5110

×

4270

×

4350
CSB-360 Standard medium type 31-89 334 789-1270
CSD-360 Short head medium type 10-29 150 352-617

Jaw Crusher
Grinding Mill
Crusher
Stone Crusher
Cone Crusher
Rock Crusher
CS Cone Crusher
