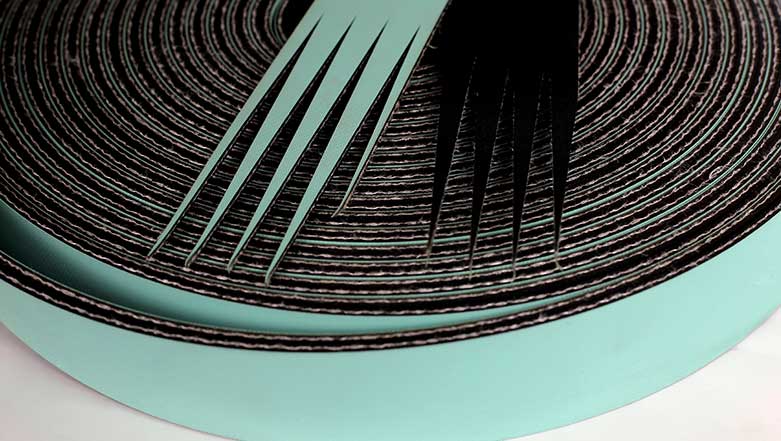

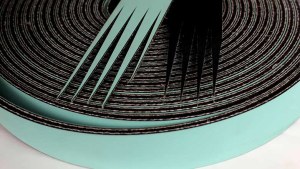

High Performance TC Belt
Designed with double-side XNBR abrasion-resistant coating and having other comprehensive excellent characteristics, the polyester tangential belt plays an important role in optimizing the machine production performances and efficiency, which is a better flat transmission belt solution for different kinds of yarn manufacturing machines and drive structures.
Properties of High Performance TC Belts
High efficiency and strength
Low elongation and long service life
Great flexibility and energy saving
Anti-static and fatigue resistant
Friction coefficients constant and size stable
Technical Specification of High Performance TC Belt
Type |
Thickness(mm) |
Extend the tension by 1%(N/mm)
|
Minimum pulley diameter (mm) |
Strength layer material
|
Elongation of installation |
Cladding material |
Permanent antistatic |
Working Temperature(℃) |
Colour of cladding
|
Friction layer color
|
Interface |
Width(mm) |
ZE-20 |
2 |
12 |
25
|
PET |
0.3-1.0 |
XNBR |
⊙ |
-20-+100 |
Dark green |
Black |
F |
1200 |
ZE-24 |
2.2 |
13 |
45 |
PET |
0.3-1.0 |
XNBR |
⊙ |
-20-+100 |
Dark green |
Black |
F |
1200 |
ZE-25 |
2.5 |
18 |
70 |
PET |
0.3-1.0 |
XNBR |
⊙ |
-20-+100 |
Dark green |
Black |
F |
1200 |
ZE-27 |
2.7 |
18 |
70 |
PET |
0.3-1.0 |
XNBR |
⊙ |
-20-+100 |
Dark green |
Black |
F |
1200 |
ZE-30 |
3 |
25 |
100 |
PET |
0.3-1.0 |
XNBR |
⊙ |
-20-+100 |
Dark green |
Black |
F |
1200 |
Application of High-Performance TC Belts
Z-20 High-Performance TC Belts With stable size, it is suitable for a tangential belt for new type super- long spinning frame and for flat belt drive in printing, woodworking, and other industries;
Z-24 High-Performance TC Belts With the stable size and long service life, it is suitable for a tangential belt for high-speed rotor spinning machines and for flat belt drive in textile, printing, and woodworking industries;
Z-25 High-Performance TC Belts With the stable size and long service life, it is suitable for a tangential belt for long fiber double twister and for flat belt drive in textile, printing, and woodworking industries;
Z-27 High-Performance TC Belts With the stable size and long service life, it is suitable for the tangential belt for high-speed double twister and for flat belt drive in textile, printing, woodworking, and other industries;
Z-30 High-Performance TC Belts With good properties in size stability, energy-saving, being unaffected by the environment, and maintenance-free, it is suitable for a tangential belt for short fiber double twisting machines and for flat belt drive in textile, printing, woodworking, and other industries.
Dehai Youli is a professional silicone rubber company, we provide rubber belting material, folder gluer belt and etc. Want to know more? Please contact us.
Personne à contacter : youli dehai, 0635 6859516
