High Pressure PTA Balloon Catheter
OVERVIEW

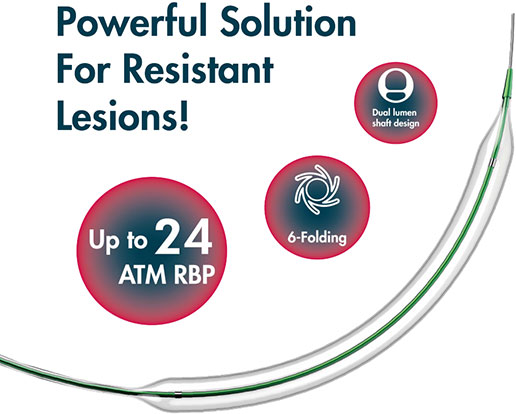

High Pressure PTA Balloon Catheter
Deliver great outcomes for both AV and vascular access patency
The Percutaneous Transluminal Angioplasty HP PTA Balloon Catheter are non-reusable semi-compliant coaxial design catheters consisting of an over-the-wire (OTW) catheter with a balloon mounted on its distal tip.
PRODUCT FEATURES
High Pressure Balloon Catheters
ZENFLOW-35
Balloon Materials (Nylon+Pebax)
Permit thinner wall thickness with higher RBP and lower compliance
Advanced balloon folding technology
Provides consistent low profiles and excellent re-wrap
SOFT AND LOW ENTRY PROFILE TIP
High radial strength and good fracture resistance
To maximize vessel patency by decreasing tissue prolapse
GOLD/TANTALUM MARKER
Creates easy access to the most complex anatomy
DUAL LUMEN SHAFT DESIGN
Provides short deflation time and good push-ability
One-handed stent deployment
THE BROADEST WORKING RANGE
Balloon Diameter: 3-10mm
Balloon Length: 20-200mm
Shafts: 40, 75, 135cm
TECHNOLOGY DATA
Catheter Type: Over-The-Wire(OTW)
Guidewire: 0.025"
Balloon folding: 3-fold[∅3mm]/6-fold[∅4-10mm]
Coating: Hydrophilic coating
Balloon Markers: 2
ORDERING INFORMATION
|
Catheter Length |
Balloon Diameter |
Balloon Length |
Sheath |
NP |
RBP |
||||
|
40cm |
75cm |
135cm |
(mm) |
(mm) |
(F) |
ATM |
kPa |
ATM |
kPa |
|
ZWH040030002035B |
ZWH075030002035B |
ZWH135030002035B |
3 |
20 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040030003035B |
ZWH075030003035B |
ZWH135030003035B |
3 |
30 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040030004035B |
ZWH075030004035B |
ZWH135030004035B |
3 |
40 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040030006035B |
ZWH075030006035B |
ZWH135030006035B |
3 |
60 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040030008035B |
ZWH075030008035B |
ZWH135030008035B |
3 |
80 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040030010035B |
ZWH075030010035B |
ZWH135030010035B |
3 |
100 |
5 |
10 |
1013 |
24 |
2432 |
|
— |
ZWH075030012035B |
ZWH135030012035B |
3 |
120 |
5 |
10 |
1013 |
24 |
2432 |
|
一 |
ZWH075030015035B |
ZWH135030015035B |
3 |
150 |
5 |
10 |
1013 |
24 |
2432 |
|
— |
ZWH075030018035B |
ZWH135030018035B |
3 |
180 |
5 |
10 |
1013 |
24 |
2432 |
|
— |
ZWH075030020035B |
ZWH135030020035B |
3 |
200 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040040002035B |
ZWH075040002035B |
ZWH135040002035B |
4 |
20 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040040003035B |
ZWH075040003035B |
ZWH135040003035B |
4 |
30 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040040004035B |
ZWH075040004035B |
ZWH135040004035B |
4 |
40 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040040006035B |
ZWH075040006035B |
ZWH135040006035B |
4 |
60 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040040008035B |
ZWH075040008035B |
ZWH135040008035B |
4 |
80 |
5 |
10 |
1013 |
24 |
2432 |
|
ZWH040040010035B |
ZWH075040010035B |
ZWH135040010035B |
4 |
100 |
5 |
10 |
1013 |
24 |
2432 |
|
— |
ZWH075040012035B |
ZWH135040012035B |
4 |
120 |
5 |
10 |
1013 |
24 |
2432 |
|
— |
ZWH075040015035B |
ZWH135040015035B |
4 |
150 |
5 |
10 |
1013 |
24 |
2432 |
|
— |
ZWH075040018035B |
ZWH135040018035B |
4 |
180 |
5 |
10 |
1013 |
24 |
2432 |
|
— |
ZWH075040020035B |
ZWH135040020035B |
4 |
<span style="font-family: C |
|||||
