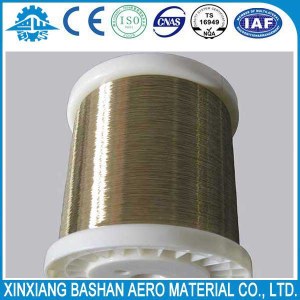

High Quality 0.25mm EDM Brass Wire for EDM Wire Cut Machine with low price by bashan
Quantité : 2tons/day Prix : USD4.9-15/kg
High Quality 0.25mm EDM Brass Wire for EDM Wire Cut Machine with low price by bashan
Brass EDM wire Φ0.1mm~0.3mm
Raw Material: Cuzn35, Cuzn37, H62
Wire Diameter: 0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm
Wire Condition: Hard, Semi-hard, Soft
Tensile Strength: 1000, 900, 500, 450 N/㎜²
Conductivity: Above 20% IACS
Spool Type: P3, P5, P10, P20, DIN125, DIN160, DIN200
Weight/Spool: 3~20kg
Packing: PE film sealed, moisture proof, quake proof, corrosion resistance.
Applications: Used on wire-cut machine of Agie, Charmilles, Sodick, Mitsubishi, Makino etc.
High Level bashan Wire Spool Brass Hard EDM Brass Wire Features:
¤ Various of wire core material can match demands
of different wire-cute machine.
¤ Heat treatment technology ensures tensile strength
stability, and prevents damage of wire.
¤ Superior verticality suitable for automatic threading.
¤ High drawing precision, fine ovality, low tolerance.
¤ Outstanding wire cutting speed compared, drop less powder.
Brass EDM wire can have different tensile strength to meet different equipment and applications.
This is achieved by a series of drawing (quenching) and heat treatment (annealing) processes.
Ordinary brass EDM wire tensile strength between 490-900N / mm2.
The descipition of High Quality 0.25mm EDM Brass Wire for EDM Wire Cut Machine with low price by bashan
EDM Brass Wire/Brass Copper Wire Manufacturer/EDM Brass Wire for EDM Wire Cut Machine
1.Details of EDM brass wire
1.Product Name: High Level bashan Wire Spool Brass Hard EDM Brass Wire for Machinery
2. Material : brass or copper
3. Wire diameter: 0.30mm, 0.25mm, 0.20mm,0.15mm,o.10mm
4. Weight/spool: 3 kg, 5 kg
5.Wire Condition: Hard, Semi-hard, Soft
6.Conductivity: Above 20% IACS
7.Spool Type: P3, P5, P10, P20, DIN125, DIN160, DIN200
8.Packing: Vacuum packing, sealed with PVC cellophane, moisture proof, quakeproof, and corrosion resistance.
9. Tensile strength: 980 N/mm2, 441N/mm2
10. Application: EDM brass wire are used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino,for EDM wire cutting machine.
The specification of High Quality 0.25mm EDM Brass Wire for EDM Wire Cut Machine with low price by bashan
Condition | Diameter(mm) | Tolerance(mm) | Tensile Strength (N/mm²) | Type of Spool (Standard Weight) |
Hard |
0.10 | ±0.001 | ≥980 |
DIN125(3kg,3.5kg |
0.15 | ±0.001 | ≥980 | ||
0.20 | ±0.001 | ≥980 | DIN125(3kg,3.5kg) p5(5kg) |
|
0.25 | ±0.001 | ≥980 | ||
0.30 | ±0.001 | ≥980 | ||
Semi-hard | 0.25 | ±0.001 |
480~520 |
|
0.30 | ±0.001 | |||
Soft | 0.25 | ±0.001 |
380~420 |
|
0.30 | ±0.001 |
Brass EDM Wire Advantages
1.The only professional military manufacturer of stainless steel wire and brass edm wire.
2. More than 60 years experience of metal wire drawing and wire mesh weaving.
3. Certified in accordance with GB/T ISO 9001: 2008, ISO/TS16949: 2009 quality system.
4. Use reliable raw material, well-equipped workshop and skilled workers.
5. 300 tons of brass edm wire annually
6. Have independent import and export rights since 1996
Packing detail
inner: plastic bag out: hard paper box or wooden case or according to your requirement
Our company
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Factory
Basahn factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.
Workshop
1) 800 tons of stainless steel wire of medium and fine wire.3600 tons of coarse wire above 1mm in diameter.
2) 500 thousand square meters of high precision wire cloth in nominal aperture sizes from 6.00 to 0.02mm.
3) 10 million pieces of thread inserts, including free run type and screw-locking type with ranges of M2-M45mm.
