High-quality 0.30mm, 0.25mm walking wire cutting electrode copper wire

Quantité : 8tons/Mont   Prix : USD4.9-15/kg

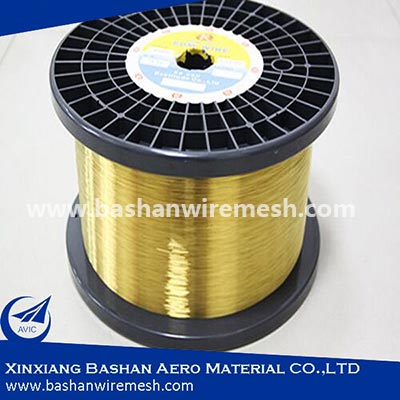

The descipition of High-quality 0.30mm, 0.25mm walking wire cutting electrode copper wire

EDM Brass Wire/Brass Copper Wire Manufacturer/EDM Brass Wire for EDM Wire Cut Machine
1.Details of EDM brass wire
1.Product Name: High sale,high quality and low price wire 0.25mmEDM brass wire by bashan
2. Material : brass or copper
3. Wire diameter: 0.30mm, 0.25mm, 0.20mm,0.15mm,o.10mm
4. Weight/spool: 3 kg, 5 kg

5.Wire Condition: Hard, Semi-hard, Soft

6.Conductivity: Above 20% IACS

7.Spool Type: P3, P5, P10, P20, DIN125, DIN160, DIN200

8.Packing: Vacuum packing, sealed with PVC cellophane, moisture proof, quakeproof, and corrosion resistance.
9. Tensile strength: 980 N/mm2, 441N/mm2
10. Application: EDM brass wire are used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino,for EDM wire cutting machine.


The specification of High-quality 0.30mm, 0.25mm walking wire cutting electrode copper wire

Condition Diameter(mm) Tolerance(mm) Tensile Strength (N/mm²) Type of Spool
(Standard Weight)

Hard
0.10 ±0.001 ≥980

DIN125(3kg,3.5kg
0.15 ±0.001 ≥980
0.20 ±0.001 ≥980 DIN125(3kg,3.5kg)

p5(5kg)

DIN160(7kg,8kg)

DIN200(15kg,16kg)

0.25 ±0.001 ≥980
0.30 ±0.001 ≥980
Semi-hard 0.25 ±0.001

480~520
0.30 ±0.001
Soft 0.25 ±0.001

380~420
0.30 ±0.001

Packing detail

Packing: Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance.
Packing measuring: 0.1mm and 0.15mm>>>3KGS/Spool,0.2mm,0.25mm,0.3mm>>>5KGS/Spool.

Features

High-quality 0.30mm, 0.25mm walking wire cutting electrode copper wire
1.High dimentional accurace
2.Diameter tolerence is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness
4.Stable mechanical properties
5.Tensile strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
6.Ultra-smooth surface

Brass EDM Wire Advantages

1.The only professional military manufacturer of stainless steel wire and brass edm wire.

2. More than 60 years experience of metal wire drawing and wire mesh weaving.

3. Certified in accordance with GB/T ISO 9001: 2008, ISO/TS16949: 2009 quality system.

4. Use reliable raw material, well-equipped workshop and skilled workers.

5. 300 tons of brass edm wire annually

6. Have independent import and export rights since 1996

Our company:


In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)

Factory

Basahn factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.

Workshop

1) 800 tons of stainless steel wire of medium and fine wire.3600 tons of coarse wire above 1mm in diameter.

2) 500 thousand square meters of high precision wire cloth in nominal aperture sizes from 6.00 to 0.02mm.

3) 10 million pieces of thread inserts, including free run type and screw-locking type with ranges of M2-M45mm.

Contact

Localisation : No.5 Daoqing Rd, Xindong Industry District, , 453000 Henan,
Personne à contacter : Jenny Xu, +86 373 3091998
