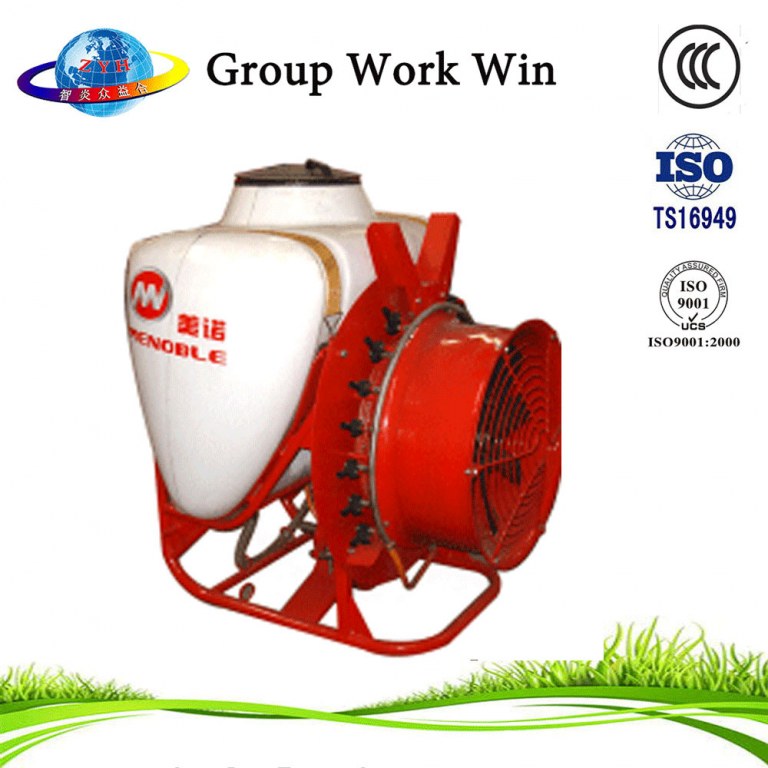

High Quality 3850 Agricultural mounted boom sprayer
High Quality 3850 Agricultural mounted boom sprayer is a kind of agricultural machinery used for comprehensive field management of wheat, soybeam, cotton and other crops,fruit，vegetable， driving operation and has lots of advantages such as easy operation, comfortable, flexible, high production efficiency and so on.
|
Chemical tank capacity(L) |
350-400、800 optional |
|
Chemical tank material |
Fiberglass |
|
Spraying span(m) |
5-8、8-14 |
|
Spraying volume of nozzle |
2-8 (optional) |
|
Spraying angle(°) |
Adjustable |
|
Dimension(mm) |
1200×1100×1300 |
|
Weight(kg) |
150-200 |
|
Pump discharge(L/min) |
60 (adjustable) |
|
Max rotation speed(rpm) |
540 |
|
Max pump pressure(mp) |
1.5 |
|
Working pressure(mp) |
0.3-0.5 |
|
Fan speed(rpm) |
2300-2600 |
|
Fan diameter(mm) |
620 |
|
Wind volume(m3/s) |
5-8 |
|
Matched power(hp) |
≥30 |
|
Spraying volume |
Adjustable |
|
Recommended working speed(km/h) |
3-7 |
|
Mixture type |
Circulation mixture |
|
Machine |
Trialed |
|
|
Working mode |
Air blast, double side spraying |
|
|
Chemical tank capacity(L) |
1500 |
|
|
Pump |
Discharge(L/min) |
120 |
|
Rotation speed(rpm) |
540 |
|
|
Working pressure(mpa) |
0.8 |
|
|
Max pressure(mpa) |
3.5-4.0 |
|
|
Fan rotation speed (rpm) |
2200 |
|
|
Matched power(hp) |
≥35 |
|
|
Spraying span(cm) |
1200-1500(calm wind station) |
|
|
Working speed(km/h) |
4-8 |
|
|
Dimension(mm) |
3750×1410×1600 |
|
