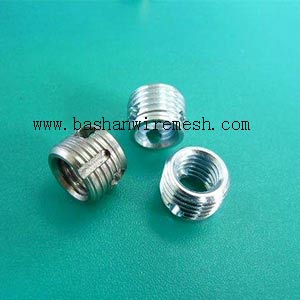

High quality and low price wire thread inserts

Quantité : 80000pcs/d   Prix : USD0.03/PC

Material: stainless steel or copper alloy or superalloy

Color: sliver or yellow etc.

Feature: Corrosion resistance, heat resistance, wear resistance

Helicoil Free-Running Inserts

Helicoil Free-Running Insertsis a high-precision surface of the cold-rolled diamond-shaped stainless steel wire precisely formed by the spiral coil, for high-precision internal and external thread concentric. The wire screw is assembled to form a high-precision internal thread that conforms to the international standard, better than the internal thread formed directly on the workpiece. Please refer to the following table for specific dimensions.

Silver plated inserts

In the stainless steel surface silver plating, stainless steel materials are 321, SY90 (GH90), SY750 and so on. The latter two materials are the nickel-based high temperature alloy stainless steel, the maximum temperature of 850 degrees or more, 650 degrees for a long time. Our factory with the domestic advanced silver production line.

Color threaded insets

Colored on the surface of stainless steel, mainly for the convenience of the operator can clearly and quickly distinguish between the varieties and specifications of the wire thread. After the color screw sleeve is installed, it is markedly different from the basic color of the die-cast aluminum part (white metal color).This will help to check whether the installation depth of the screw sleeve is suitable and whether it is missing. At the same time, it facilitates the visual management of the warehouse. We have the technology of the domestic patent.

Helicoil Screw Lock Inserts

In addition to the general function of the same type of wire screw sets, but also play the screw to the screw hole, in the shock, the impact of the screw will not loose off, than the usual locking device process performance. It does not reduce the screw torque, but also has a high reusability. Please refer to the following table for specific dimensions.

Cadmium plated screw

In the stainless steel surface chrome plating, can effectively eliminate the potential difference between the substrate and the bolt, more effective corrosion, corrosion. We have advanced chrome production line.

Metric Series Wire Hose Type Size and Installation Parameter List

d p xd L1 W Dz do L3 L2 Kg
10 1.5 1d 10.0 5.0 12.10-12.50 10.4 16.0 8.5 1.80
1.5d 15.0 8.1 21.0 13.5 2.85
2d 20.0 11.2 26.0 18.5 3.90
2.5d 25.0 14.2 31.0 23.5 5.47
3d 30.0 17.2 36.0 28.5 6.60
10 1.25 1d 10.0 6.0 12.10-12.50 10.3 15.0 8.8 1.75
1.5d 15.0 9.7 20.0 13.8 3.05
2d 20.0 13.1 25.0 18.8 4.36
2.5d 25.0 16.9 30.0 23.75 5.66
3d 30.0 20.1 35.0 28.75 7.00
10 1 1d 10.0 7.6 12.10-12.50 10.3 14.0 9.0 1.24
1.5d 15.0 12.1 19.0 14.0 1.90
2d 20.0 16.3 24.0 19.0 2.55
2.5d 25 20.7 29.0 24.0 3.10
3d 30 25.0 34.0 29.0 3.70
