High sale,high quality and low price wire 0.25mmEDM brass wire by bashan
Quantité : 8tons/Mont Prix : USD 2~4.5 /kg
The descipition of High sale,high quality and low price wire 0.25mmEDM brass wire by bashan
EDM Brass Wire/Brass Copper Wire Manufacturer/EDM Brass Wire for EDM Wire Cut Machine

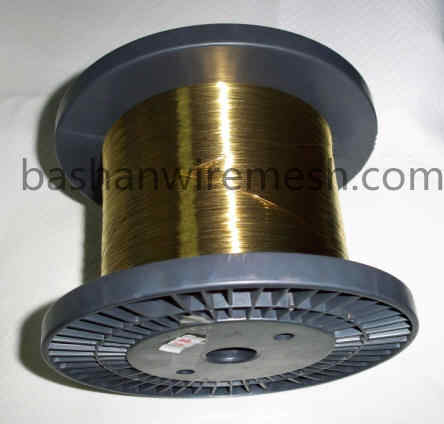

1.Details of EDM brass wire
1.Product Name: High sale,high quality and low price wire 0.25mmEDM brass wire by bashan
2. Material : brass or copper
3. Wire diameter: 0.30mm, 0.25mm, 0.20mm,0.15mm,o.10mm
4. Weight/spool: 3 kg, 5 kg
5.Wire Condition: Hard, Semi-hard, Soft
6.Conductivity: Above 20% IACS
7.Spool Type: P3, P5, P10, P20, DIN125, DIN160, DIN200
8.Packing: Vacuum packing, sealed with PVC cellophane, moisture proof, quakeproof, and corrosion resistance.
9. Tensile strength: 980 N/mm2, 441N/mm2
10. Application: EDM brass wire are used on low speed wire cutting machines like Agie-charmilles, Sodick, Mitsubishi, Makino,for EDM wire cutting machine.
The specification of High sale,high quality and low price wire 0.25mmEDM brass wire by bashan
Condition |
Diameter(mm) |
Tolerance(mm) |
Tensile Strength (N/mm²) |
Type of Spool |
Hard |
0.10 |
±0.001 |
≥980 |
DIN125(3kg,3.5kg |
0.15 |
±0.001 |
≥980 |
||
0.20 |
±0.001 |
≥980 |
DIN125(3kg,3.5kg) p5(5kg) |
|
0.25 |
±0.001 |
≥980 |
||
0.30 |
±0.001 |
≥980 |
||
Semi-hard |
0.25 |
±0.001 |
480~520 |
|
0.30 |
±0.001 |
|||
Soft |
0.25 |
±0.001 |
380~420 |
|
0.30 |
±0.001 |
Packing detail
Packing: Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance.
Packing measuring: 0.1mm and 0.15mm>>>3KGS/Spool,0.2mm,0.25mm,0.3mm>>>5KGS/Spool.
Features
Features of EDM brass wire
1.High strength: Brass wire raw material and multi-element copper alloy selected ;Advanced facilities ,experience techiques ,24 hours continuous pre-furnace trace testing .
2.High precision: emd brass wire with advanced testing instrument,entire manufacturing techniques combining the latest fully automtic wire-stretching machines,complete guarantees precision 1000N/m2 strength,diameter tolerance within +/-0.001mm.
3.Strict inspection and testing systems: Quality control systems with advanced chemical analyzers and physical inspection,testing facilities to ensure stability of chemical composition and optimized tensile strength,excllent surface,overall product quality.
Our company:
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Factory
Basahn factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.
Workshop
1) 800 tons of stainless steel wire of medium and fine wire.3600 tons of coarse wire above 1mm in diameter.
2) 500 thousand square meters of high precision wire cloth in nominal aperture sizes from 6.00 to 0.02mm.
3) 10 million pieces of thread inserts, including free run type and screw-locking type with ranges of M2-M45mm.
Contact
Personne à contacter : Jenny Xu, +86 373 3091998
