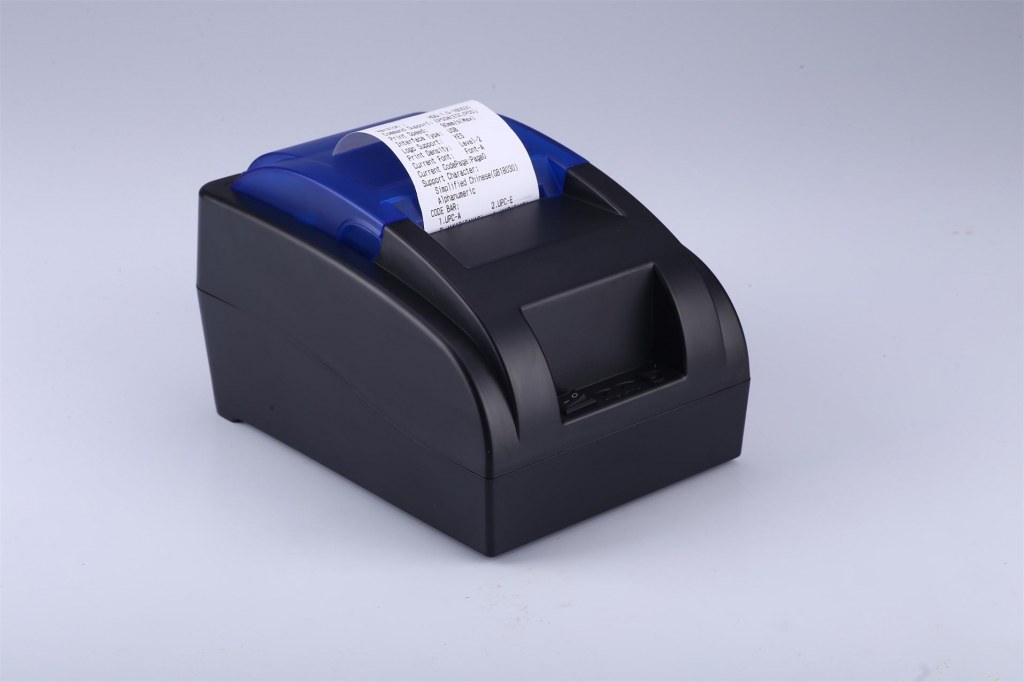

High Speed 58mm Thermal Receipt Printer with 83mm paper roll holder
TJM-H58 is a Mini 58MM thermal printer which carefully designed for ordinary paper printing service , the design exquisite fashion, small and smart, with highly technological sense. Using large motor and a big gear movement design, drag 83MM large diameter roll and achieve 130 mm / s high speed printing at the same time, the perfect solution to solve the problem of common 58mm printer support small diameter roll, print speed slow ,enable print more efficient. At the same time, provides a rich interface ,including network port (100M), WIFI, Bluetooth, GPRS, enable print more flexible and convenient.
Product performance:
●Appearance compact design, fashion technology;
●Easy paper feed structure, simple and convenient operation;
●High reliability of large motor and large gear movement;
●130 mm / second ultra high speed print, significantly improve the printing efficiency;
●Big paper warehouse design, the perfect support for 83MM large diameter rolls;
●Rich interface optional: USB, COM, Internet (100M), WIFI, Bluetooth, GPRS;
●Support GB18030 large font and multi language ;
●Supports LOGO and graphics downloads and print;
●Supports Windows, Linux, Android and IOS system print;
●100M Ethernet interface, print quickly while avoiding losing bills.
Application:
Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal
Printer Parameters:
|
Items |
Parameters |
|
|
Print parameters |
Printing Method |
Thermal Line |
|
Printing Method |
48MM |
|
|
Resolution |
384dots/Line(8dots/mm,203dpi) |
|
|
Printing Speed |
130mm/Second |
|
|
Interface Type |
USB,COM,Internet(100M),WIFI,GPRS,Bluetooth |
|
|
Line Spacing |
3.75 mm(Can adjust line spacing by command) |
|
|
Line No. |
Font A: 32 character /Line Font B: 42 character/Line Simple,traditional Chinese-16 lines |
|
|
Character |
Standard GB18030 simplified / traditional Chinese Fonts |
|
|
Character Size |
ANKcharacter,Font A:1.5×3.0mm(12×24 dots) |
|
|
Bar code Character |
Extended character set |
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEur ope/Iran/WPC1252/PC866/PC852/P C858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864 /PC1001/(Latvian)/(PC1001)/(PT 151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
|
Bar code |
1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/ 2D bar code:QRCODE |
|
|
Graphics printing |
Graphics printing |
Supports bitmap download and print
|
|
Paper |
Type |
Thermal Roll |
|
Width |
57.5±0.5mm |
|
|
Diameter |
≤83mm |
|
|
Feed Method |
Easy feed(Clameshell feed) |
|
|
Print commands |
Commands |
ESC/POS |
|
Power |
Power Adaptor |
Input:AC 100V-240V,50-60Hz Output:DC 12V/2A |
|
Casher Drawer output |
DC 12V/1A |
|
