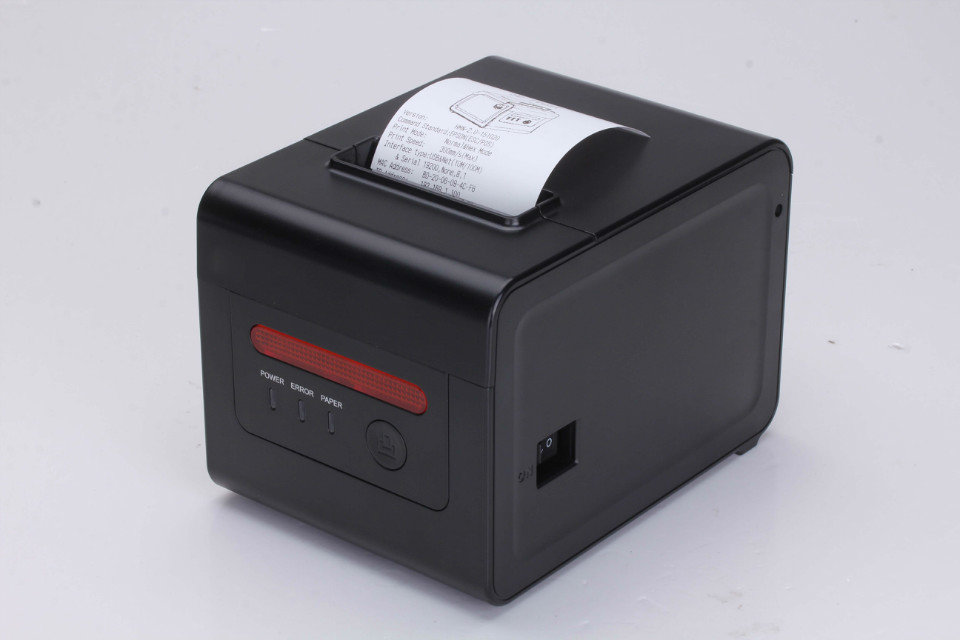

High Speed 80mm Thermal Receipt Printer for network and kitchen printing
TJM-H801 is a high quality thermal printer designed for network and kitchen printing.300MM/S of high speed printing; excellent waterproof, oil proof, dustproof structure design; rich interface selection including WiFi, GPRS ; print status real-time monitoring and large input buffer, to avoid losing any bills, embedded IE server, configure printers more convenient, so many leading technology beyond the performance of similar products, allowing you to enjoy high-quality, free from worry print experience.
Product performance:
●300 mm / second ultra high-speed printing, improve the printing efficiency;
●Excellent waterproof, anti - oil, anti-dust structure design;
●Support wall hanging function, meet the special environment printing;
●Movable baffle design, support 80MM, 58MM different width of the paper roll printing;
●Support 80MM large diameter roll;
●Support kitchen printing and Internet printing
●Support printer monitoring function,to avoid losing bills
●Using 100M Ethernet card, connect printer faster, to avoid losing bills
●Recover printing after netwok disconnection,to avoid losing bills
●2048K super input buffer,to avoid losing bills
●Support LOGO Graphical download and print
●Support 1D,2D bar code printing
●Support order come remind and error alarm
●Support black mark orientation and re-print
●GB18030Large font
●Support Multi language printing
●Rich-interface: Internet(100M)+USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bl uetooth
●Built-in WEB server,configure printer by IE browser
●Compatible with ESC/POS print instruction mode
●Support Windows,Linux,Android and IOS system printing
Application
Shopping malls, restaurants, stores, warehousing, taxation, banking, medical, postal
Printer Parameters:
|
Item |
Parameters |
|
|
Print parameters |
Printing Method |
Thermal Line |
|
Printing width |
72mm |
|
|
Resolution |
576 Dots/Line or 512 Dots/Line(8dots/mm,203dpi) |
|
|
Print speed |
300mm/Second |
|
|
Interface |
Internet(100M)+USB+COM;Internet(100M)+USB+WIFI;USB+GPRS;USB+COM;USB+Bl uetooth |
|
|
Line Spacing |
3.75mm(Can adjust line spacing by command) |
|
|
Line No. |
FontA-48Lines/FontB-64Lines/Simple,traditional Chinese-24 lines |
|
|
Character |
standard GB18030 simplified / traditional Chinese Fonts |
|
|
Character Size |
ANK character,Font A:1.5×3.0mm(12×24 dots) |
|
|
Bar code Character |
Extended character set |
PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEur ope/Iran/WPC1252/PC866/PC852/P C858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864 /PC1001/(Latvian)/(PC1001)/(PT 151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
|
Bar code |
1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE 128 2D barcode:QRCODE |
|
|
Graphics printing |
Graphics printing |
Supports bitmap download and print
|
|
Cutter |
Cutter Function |
Full cut/Half cut |
|
Paper |
Type |
Thermal |
|
Width |
79.5±0.5mm |
|
|
Diameter |
≤80mm |
|
|
Feed method |
Easy feed(Clamshell feed) |
|
|
Print commands |
Commands |
ESC/POS |
|
Power |
Power Adaptor |
Input:AC 100V-220V,50-60Hz Output:DC 24V/2.5A |
|
Cash Drawer output |
DC 24V/1A |
|
|
Buffer |
Input Buffer |
2048K bytes |
|
NV Flash |
256K bytes |
|
|
physical characteristics |
Weight |
1.5KG |
|
Dimension |
195*145*143(MM) |
|
|
environment |
Working |
Temp:5 ~ 45℃, Humidity:10 ~ 80% |
|
Storage |
Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew) |
|
|
Reliability parameter |
Print Head Life |
150KM(print density≤12.5) |
|
Cutter Life |
1500,000times |
|
|
Software |
Driver |
Android,IOS,Linux,,WinXP,Win7,Win8,Win8.1,Win10 |
