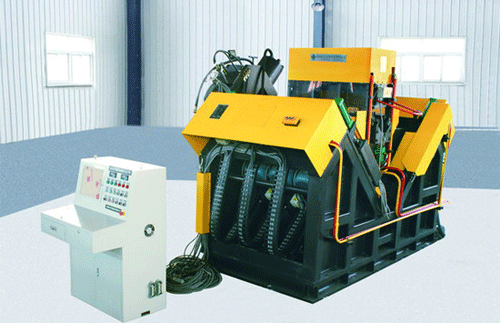

High speed CNC Angle drilling machine
Quantité : 30 sets pe Prix : Negotiated
CNC Angle drilling machine
Technical parameter:
Model JX2532F
(mm)Angle size 140×140×10-250×250×32
(m) Max. length of Angle 12 or 14 (By customer's request)
(kN) Marking force 1000
Marking groups 4
(mm) Dimension of characters 14×19×10
Range of stadia 40-220 (Stepless adjustment)
(piece) No. of drill per side 3
Taper of drilling spindle BT40
(mm)Max. drilling dia. Φ26
(mm) Drilling stroke 150
(r/min) Max. rotation speed of spindle 6000
(m/min) Max. feeding speed 40
(m/min) Max. moving speed of slipway of drilling head 10
(m/min) Max. feeding speed of drilling head 14
CNC axes No. 9
(m) Overall dimension(L×W×H) 32×9×2.5
Jinan Supertime Technology Co.,ltd CNC Angle drilling machine
Personne à contacter : Kate Guo, 8615820008837
