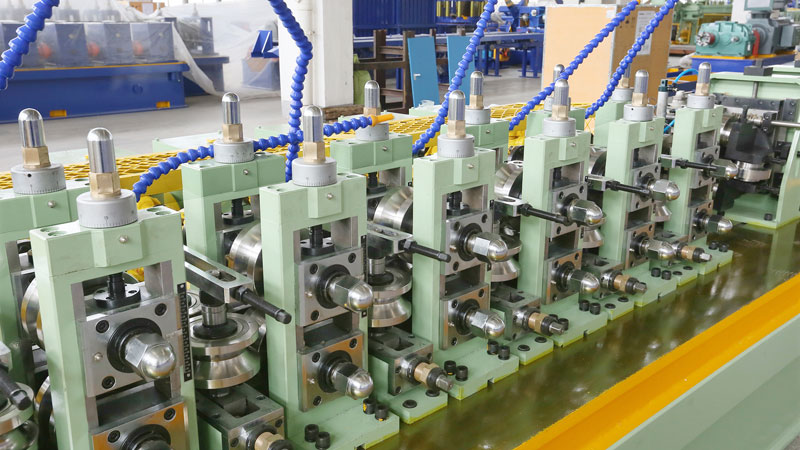

High Speed Tube Mill Line

Quantité : 6000pc/mon   Prix : 1000-6000USD

High Speed Tube Mill Line is used to produce tube diameter between φ4mm to φ50mm. The top working speed can be 120m/min to 130m/min.

Working Flow of High Speed Tube Mill Line

Decoiling

Shear and butt welding

Accumulator

Roll forming

High frequency ERW

Removing burrs

Cooling

Sizing

Flying saw

Conveying

Downloading

Packing

Warehousing

Main technical parameters (For reference only, will be as requests):

A: suitable strip coils

1. Suitable material: Carbon steel coil;

Alloy Steel Coil; API5L X42-X80

(For reference only, will be as requests)

2. Suitable strip width range: 13mm-157mm

3. Wall Thickness: 0.2mm-22mm

B. Finished products

1.Pipe O. D. φ4mm-φ50mm

2.Thickness: 0.2mm-3mm

3.Square tube: 6mmx6mm-39mmx39mm, thickness: 0.3mm-3mm

Length: 6m-12m

Length tolerance: +/-3mm

C. Equipment data (for reference only)

Production speed: 120-130m/min

Direction: Left to right or right to left from operator's side(as requests by customer)

Capacity: 10,000 ton/year-15, 000 ton/year

Electricity input power: 50kW-65kW

Foundation: 40m50m (length) x 3.8m-4m (width)

Weight: About 30ton300ton.

Operator: 6-8 people (as size requests)

Tube mill line china / pipe mill china line from Hangzhou Roll Forming Technology Co., Ltd adopts mature, reliable, completed, economical and advanced process with advanced furnishments to ensure the tube pipe mill to reach a relatively advanced level not only in quality and cost but also consumption so that the products have strong competitive power in quality and price.

Localisation : ROOM 1010, BUILDING 1,XINYI PLAZA, NO.628, JINCHENG ROAD, XIAOSHAN, HANGZHOU, ZHEJIANG PROVINCE, P.R. CHINA, 311202 XIAOSHAN,
Personne à contacter : liu Tyler, +86 571 82686709
