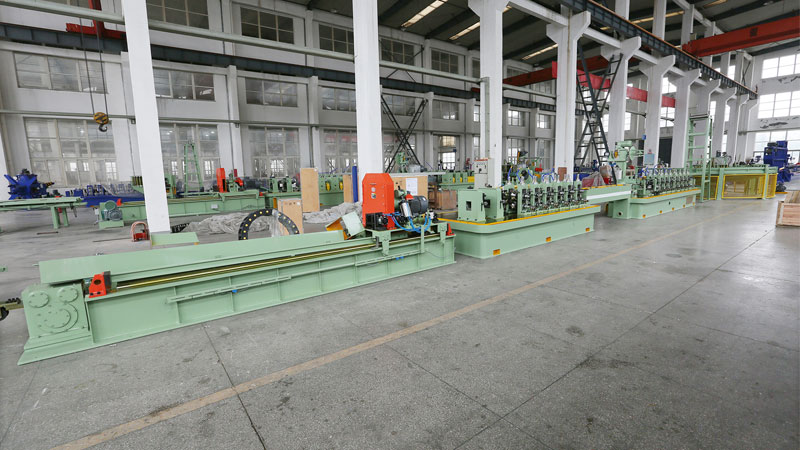

High Speed Tube Mill Line
Prix : talk in detail
High Speed Tube Mill Line is used to produce tube diameter between φ4mm to φ50mm. The top working speed of this tube mill line can reach as high as 120m/min to 130m/min.
Main Technical Parameters of High Speed Tube Mill (For reference only, will be as requests):
A: suitable strip coils
1. Suitable material: Carbon steel coil;
Alloy Steel Coil; API5L X42-X80
(For reference only, will be as requests)
2. Suitable strip width range: 13mm-157mm
3. Wall Thickness: 0.2mm-22mm
B. Finished products
1.Pipe O. D. φ4mm-φ50mm
2.Thickness: 0.2mm-3mm
3.Square tube: 6mmx6mm-39mmx39mm, thickness: 0.3mm-3mm
Length: 6m-12m
Length tolerance: +/-3mm
C. Equipment data (for reference only)
Production speed: 120-130m/min
Direction: Left to right or right to left from operator's side(as requests by customer)
Capacity: 10,000 ton/year-15, 000 ton/year
Electricity input power: 50kW-65kW
Foundation: 40m–50m (length) x 3.8m-4m (width)
Weight: About 30ton–300ton.
Operator: 6-8 people (as size requests)
High-Speed Tube Mill Line Technical parameters
|
Model |
Round pipe |
Square pipe |
Thickness |
Speed |
|
mm |
mm |
mm |
m/min |
|
|
RFT-12 |
Ф4-Ф12 |
|
0.2-0.5 |
120-130 |
|
RFT-16 |
Ф6-Ф16 |
|
0.2-0.8 |
120-130 |
|
RFT-20 |
Ф8-Ф20 |
6x6-15x15 |
0.3-1.0 |
120-130 |
|
RFT-25 |
Ф10-Ф25 |
7x7-19x19 |
0.3-1.5 |
120-130 |
|
RFT-32 |
Ф12-Ф32 |
9x9-25x25 |
0.5-2.0 |
120-130 |
|
RFT-50 |
Ф20-Ф50 |
15x15-39x39 |
0.8-3.0 |
120-130 |
High-Speed Tube Mill Line Applications
Finished Tubes by High-Speed Tube Mill
Specifications of High-Speed Tube Mill
|
Machine Condition |
Fully New, A Grade quality |
|
Size |
As requests |
|
Power Supply |
220V/380V/415V/460V/480V, 50/60Hz, 3P (as requests) |
|
Equipment Weight |
About 30ton-300ton |
|
Dimension |
40m–400m (length) x 3.8m-40m (width) |
|
LOADING SIZE |
Normally need 4-30 x 40' containers |
|
Equipment Color |
normally Blue/Green/White, or as requests |
|
Place of Origin |
Zhejiang, China (Mainland) |
|
Packing |
Standard and careful export packing |
If you need any kinds of roll forming machine, please contact us, as a professional forming machine manufacturer, RF is willing to offer you high quality products.
Personne à contacter : liu Tyler, +86 571 82686709
