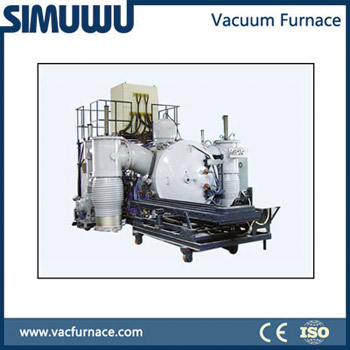

High temperature brazing furnace
|
Main technical data of high temperature vacuum soldering furnace |
|||||
|
Model |
Effective working dimension (mm) |
Max temperature (℃) |
Ultimate pressure (pa) |
Pressure rising rate (pa/h) |
Temperature uniformity (℃) |
|
RVSB-459 |
450×450×900 |
1300 |
8.5×10-4 |
0.5 |
±3 |
|
RVSB-559 |
500×500×900 |
1300 |
8.5×10-4 |
0.5 |
±3 |
|
RVSB-669 |
600×600×900 |
1300 |
8.5×10-4 |
0.5 |
±3 |
|
RVSB-6612 |
600×600×1100 |
1300 |
8.5×10-4 |
0.5 |
±3 |
|
RVSB-7712 |
700×700×1200 |
1300 |
8.5×10-4 |
0.5 |
±5 |
|
RVSB-8716 |
800×700×1600 |
1300 |
8.5×10-4 |
0.5 |
±5 |
It is applied for brazing of copper, Ni, gold, stainless steel, high-temp alloy, especially heat-resistant alloy with large content of Al and Ti; it is also used for brazing of congeneric refractory metals or heterogeneous metals, such as Ti, Zr, Ni, Mo. During the brazing process under vacuum condition, there is no oxidation, no pollution, no air hole, no slag inclusion or corrosion. There is very small deformation for the welded workpieces. Multiple-pass weld and multiple components can be completed at the same time, so it is high-efficiency.
Development and production of vertical, horizontal, up-sliding, bottom-sliding and other forms.
Personne à contacter : Kevin Liu, 0086 21 50878190
