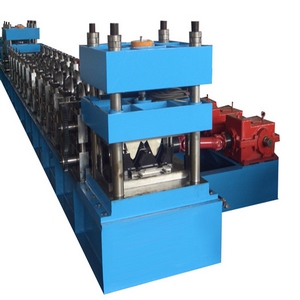

Highway Guardrail Forming Machine

Detailed Product Description

Highway Guardrail Forming Machine From Wuxi TUT:
1)thick: 3mm to 5mm.
2)waves: 2 or 3.
3)chain-gear&gear-box

Highway Guardrail Forming Machine From Wuxi :

TUT MACHINERY: Highway Guardrail Forming Machine,Crash Barrier Fo ing Machine,Guardrail Forming Machine

Introduction of Guardrail Roll Forming Mac chine, Expressway Guardrail Roll Forming Machine:

This guard rail roll forming machine is co LC control system and unloading rack.

We can supply the machine producing two-wave guardrail and three-wave guardrail

Production processing Decoiling---flatting just distance of rollers to complete.

Technical parameter:

1. Matching material: Feed width: 480mm,Q235 galvanized steel strip
2. Material thickness: 2-4mm
3. Main motor power for forming: 22kw
4. Forming speed: 10-12m/min
5. Hydraulic station power: 11 kw
6. Roll forming stations: About 17
7. Hydraulic pressure: 20 mpa
8. Controlling system: PLC
9. Total weight: About 25 Ton

Additional information:
Material of forming rollers: GCr15 bearing steel with quenched treatment

Guard Rail Forming Machine, Guard Rail For forming equipment, roll forming line
