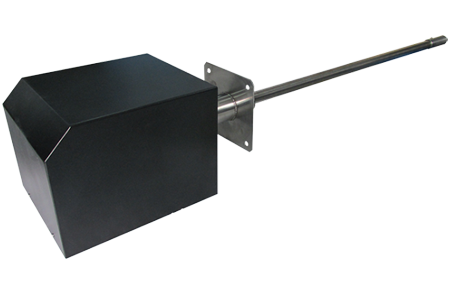

HM-100 High-Temperature Hygronom

Overview Of HM-100 High-temperature Gas Moisture Analyzer

Hygronom is also called gas moisture meter analyzer or dew-point meter, which is used to measure the humidity of flue gas emitted by pollution source. According to measured humidity, it converts wet gas concentration into dry gas concentration. In addition, HM-100 high-temperature gas moisture analyzer also can be used in industrial online humidity monitoring.

HM-100 flue gas hygronom (high temperature gas analyzer) is equipped with an internal high-precision capacitance digital temperature & humidity sensor. The installation method adopts the in-situ immersion installation. The HM-100 high-temperature gas moisture analyzer is a self-developed product, of which, the core component is from Switzerland. Put the sensor inside stack to get in touch with flue gas. The probe needs preheating to prevent gas from condensation, which will affect the measurement of moisture in the flue gas. After gas contacts with the measurement chip, the chip will change capacitance to measure flue gas concentration.

Features Of HM-100 High-Temperature Gas Analyzer

• The HM-100 high-temperature gas analyzer is convenient for installation, disassembly, and cleaning with small and compact structure

• The HM-100 high-temperature gas analyzer manufactured by continuous emission monitoring system suppliers, like ZETIAN, has direct and simple key operation on site

• The probe of the HM-100 high-temperature gas analyzer is equipped with heat tracing function to prevent condensate water from damaging humicap and thermal resistance

• The HM-100 high-temperature gas analyzer has core components with high-performance index and reliability

Technical Parameter Of HM-100 Gas Moisture Analyzer

Measurement Range

H2O: 0~40.00%(volume percent)(optional)

Humidity sensor

Resistance-capacitance

Temp sensor

Pt100 platinum resistor

Accuracy

040.00% H2O: ±2%

Repeatability

040.00% H2O: ±1%

Stability

040.00% H2O: ±1%F.S./7d

Response time

T906s

Sensor life

2 years (under normal use)

Transmitter life

5 years (under normal use)

Power supply

220VAC

Instrument weight

About 10kg

Power consumption

Maximum about 35VA (heating)

Ambient temperature

Transmitter: -10°C+55°C

Probe: 0180°C (except probe cable)

Ambient humidity

95%RH

Sample gas flow

(26)L/min

Analog output (2 sets)

Temperature and humidity, 4-20mA

Communication

Rs232 (standard)

Typical Application of HM-100 High-temperature Gas Moisture Meter


1.High-temperature humidity measurement in exhaust emission (CEMS) of fire coal and oil burning boiler
2.Humidity measurement in food processing
3.Humidity measurement in wood, building material, and papermaking industry
4.Humidity measurement in fields of chemical industry and fiber
5.Humidity measurement under high temperature of open width dyeing in dyeing & printing industry

HANGZHOU ZETIAN TECHNOLOGY is one of professional air pollution monitoring instruments manufacturers, we provide Air Quality Monitor, Water Quality Analyzer, air quality monitor and so on. Want to know more? Please contact us.

Localisation : 1st Building of Taiheng Mansion, NO.22 Zhiren Street, Puyan, Binjiang District, Hangzhou, China, 310053 Hangzhou,
Personne à contacter : Alex Wang, +0086 18957111635
