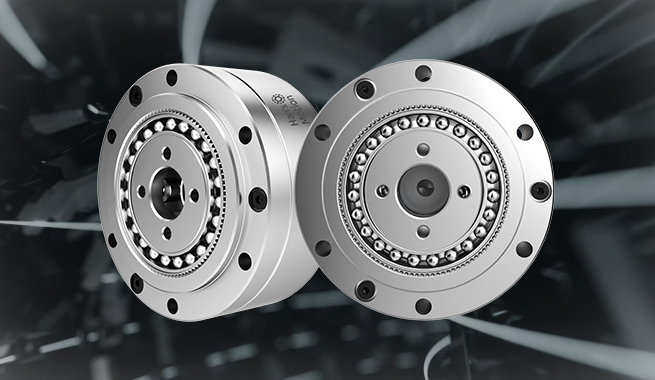

HMCD Series Harmonic Drive Cup Type

HMCD is Ultra-flat harmonic drive china, with characteristics as compact and lightweight, input and output coaxial, excellent positioning accuracy and rotation accuracy.

HMCD Series Harmonic Drive Cup Type List

HMCD-Ⅱ Unit (Super Flat) Series Harmonic Drive

HMCD-II is a highly compact and super flat with reinforced output bearing gear set. Due to its very short overall length and low weight, it can be used for space saving design installations. 5 sizes with 4 ratios are available.

Sealing Mechanism Of HMCG Series Harmonic Drive Cup Type

In Order To Prevent Lubricating Grease From Leaking And Keep The High Durability Of The Harmonic Red

Rotational motion part: oil seal (built-in spring). Please notice whether there is a scratch on the shaft side.

Flange mounting face, chimera: O-ring and sealant. Please notice whether the plane is skewed or the meshing of the O-ring; (for the O-ring and O- groove for reducer installation, See chart below).

Screw hole part: use the screw locking agent with a sealing effect (Loctite 243 is recommended) or sealing tape.

As a strain wave gear manufacturer, we can offer kinds of strain wave gears for sale, and the strain wave gear price is affordable, if you have needs, please contact us.

If you are looking for a professional harmonic drive company, please leave us a message.
