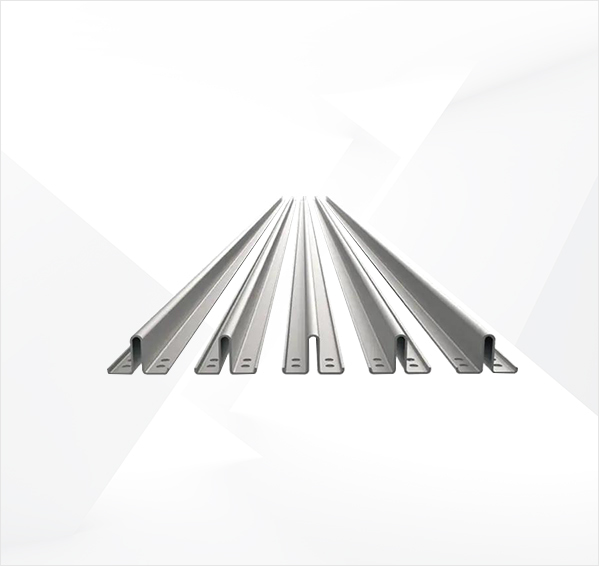

Hollow Guide Rail
The elevator guide rail is the safety rail for the elevator to travel up and down in the hoist. The hollow guide rail is installed on the hoist wall and is fixedly connected to the hoist by the guide rail frame and the guide rail bracket. We offer various models of high quality hollow guide rails including TK3, TK3A, TK5 and TK5A.
Hollow Guide Rail Basic Information
|
Type |
T type guide rail |
Shipping |
FCL/LCL |
|
Material |
Q235 Steel |
Package |
Standard package |
|
Standard length |
5m |
Warranty |
5 years |
|
Delivery time |
2 week |
Production capacity |
35000Tons/Year |
Specifications of Hollow Guide Rail
|
Type |
b1 |
c |
f |
h1 |
h2 |
k |
m |
r1 |
α |
b3 |
L2 |
L3 |
d |
|
Tolerances |
±1.0 |
- |
±0.2/0.15 |
0/0.5 |
- |
±0.4 |
- |
- |
3 |
±0.5 |
±0.5 |
±0.5 |
- |
|
TK3 |
75 |
1.8 |
2.2 |
55±0.2 |
|
10±0.2 |
25 |
5 |
90° |
43 |
90 |
30 |
10 |
|
TK5 |
87 |
1.8 |
3 |
60 |
|
16.4 |
25 |
3 |
90° |
50 |
180 |
20 |
14 |
|
TK3A |
78 |
1.8 |
2.2 |
60 |
10 |
16.4 |
25 |
3 |
90° |
45 |
75 |
25 |
11.5 |
|
TK5A |
87 |
1.8 |
3 |
60 |
10 |
16.4 |
25 |
3 |
90° |
45 |
75 |
25 |
11.5 |
Hollow Guide Rail Logistics
Before the logistics transportation, we will have multiple processes to inspect and package the products to ensure that each product is delivered to customers with good quality.
