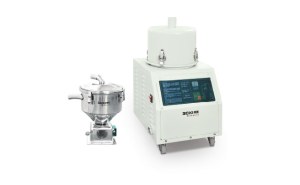

HOPPER LOADER (POSITIVE PRESSURE)
Quantité : 1000
The main plastic material hopper loaders and the hopper adopt a separate design, which can be matched with more than 2 hoppers for one-to-many conveying, which improves the raw material conveying capacity, and the raw material conveying capacity reaches 700 kg per hour. The maximum lift is up to 10 meters, suitable for long-distance raw material transportation, easy to operate, and can meet customer needs.
Specifications Of Hopper Loader (Positive Pressure)
|
Standard specifications |
SKA-300G |
SKA-400G |
SKA-700G |
||
|
Conveying direction |
|
1 |
1 |
1 |
|
|
Conveying capacity |
kg/h |
200 |
300 |
350 |
|
|
Electric power |
Total power |
kw |
1.1 |
0.75 |
1.1 |
|
Feeding blower power |
kw |
1.1 |
0.75 |
1.1 |
|
|
Motor type |
Carbon brush |
Inductive |
Carbon brush |
||
|
Electric power source Specification |
|
220V 50Hz 2P |
380V 50Hz 3P |
220V 50Hz 2P |
|
|
Dimensions (LXWXH) |
mm |
340X370X570 |
370X450X660 |
360X390X560 |
|
|
Standard specifications |
SKA800G-15 |
SKA800G-20 |
SKA800G-30 |
SKA900G-15 |
SKA900G-20 |
SKA900G-30 |
||
|
Conveying direction |
|
1 |
1 |
1 |
2 |
2 |
2 |
|
|
Conveying capacity |
kg/h |
260 |
350 |
600 |
260 |
350 |
600 |
|
|
Electric power |
Total power |
kw |
1.1 |
1.5 |
2.2 |
1.1 |
1.5 |
2.2 |
|
Feeding blower power |
kw |
1.1 |
1.5 |
2.2 |
1.1 |
1.5 |
2.2 |
|
|
Motor type |
Inductive |
|||||||
|
Dimensions (LXWXH) |
mm |
555X400X825 |
555X400X825 |
555X425X865 |
555X400X825 |
555X400X825 |
555X425X865 |
|
|
Weight |
KG |
65 |
80 |
90 |
70 |
85 |
95 |
|
Hopper Loader (Positive Pressure) Working Princlple
Hopper Loader (Positive Pressure) Gallery
Plastic Loader
Hopper Loader (Positive Pressure) Gallery
Hopper Loaders For Plastics
Hopper Loader For Injection Moulding Machine
With strong manufacturing capacity and Digital production management, we always have plastic machine for sale and plastics machinery for sale. Delivery of equipment is fast and efficient.
