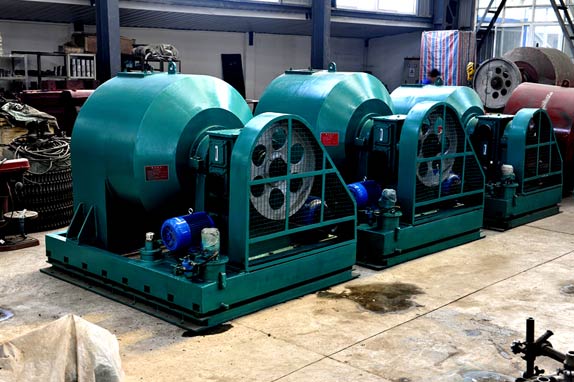

Horizontal Centrifuge Machine
TWZ series horizontal vibratory centrifuge belongs to the centrifugal dewatering machine, the series of horizontal vibratory centrifuge is mainly used for dehydration of fine and medium coal (0.5 to 26mm), it can also be used for other similar materials dehydration.
Structural Features of Horizontal Centrifuge Machine
The horizontal vibratory centrifuge made the material separated by solid liquid on a high-speed rotating screen, a vibrating power is attached to the material on the screen by the excitation system to realize the solid-liquid separation with automatic unloading. The TWZ series has many advantages, including high production, small crushing degree, long life period of screen, stable, convenient to fix, simple structure, low noise, high reliability and low cost.
Working Principle of Horizontal Centrifuge Machine
Materials entered into the bottom of the screen basket through a feed-in tube with an enamel and screen base, materials within the screen barrier subjected to centrifugal force and closed to the screen surface. Under the effect of vibration, the material layer moved toward large end of screen basket evenly, the dehydrated material was thrown around the screen basket, falling into a discharge port at the bottom of the shell and discharged. The moisture in the material through the material layer and the sieve seam was thrown around the shell under the action of centrifugal force, then along the shell wall to the drain outlet.
Working Principle of Horizontal Centrifuge
Technical Performance of Horizontal Centrifuge Machine
|
Basic Parameters |
Unit |
Model |
||||||
|
|
|
TWZ850 |
TWZ10A |
TWZ1150 |
TWZ1300 |
TWZ1400 |
TWZ1500 |
|
|
Feed Size |
mm |
≤50 |
0-25 |
0.5-50 |
0-50 |
≤50 |
0.5-50 |
|
|
Processing Capacity |
t/h |
30-50 |
50-100 |
100-150 |
180-250 |
200-300 |
250-350 |
|
|
Product Moisture |
% |
44325 |
||||||
|
Large Diameter of Screen |
mm |
850 |
1000 |
1150 |
1300 |
1400 |
1500 |
|
|
Size of Screen Cut |
mm |
0.25，0.3，0.35，0.5 |
||||||
|
Vibration Frequency |
Hz |
25 |
255 |
25 |
25 |
25 |
25 |
|
|
Double-Amplitude |
mm |
44292 |
44292 |
44292 |
44292 |
44292 |
44292 |
|
|
Power of Main Motor |
Kw |
15 |
22 |
37.5 |
45 |
55 |
75 |
|
|
Power of Vibration Motor |
Kw |
4 |
5.5 |
7.5 |
7.5 |
11 |
15 |
|
|
Power of Oil Pump Motor |
Kw |
0.37 |
0.37 |
0.55 |
0.55 |
0.55 |
0.55 |
|
|
Size |
Length |
mm |
2060 |
2150 |
2800 |
2700 |
3100 |
3170 |
|
Width |
mm |
1510 |
1875 |
1930 |
2260 |
3090 |
2975 |
|
|
High |
mm |
1625 |
1765 |
1930 |
2245 |
2295 |
2400 |
|
|
Weight |
kg |
2500 |
2620 |
5527 |
6500 |
9200 |
10000 |
|
As one of heavy equipment suppliers, we will provide more kinds of related products for sale, anything you need, please contact us.
