HPC High Power Charger
Quantité : 500units/m Prix : $500-5000

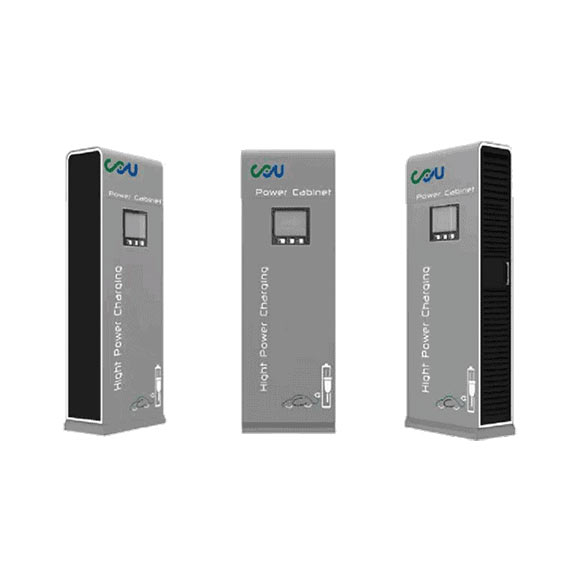

HPC Ultra Fast Charging Station 350kW
EVHS-350, high power ev charger is a new and innovative solution to the growing demand for fast high current charging of next-generation electric vehicles(E-Bus and Luxury EVs). EVHS-350 system adopts modular structure design and the most advanced ultra-fast charging technology. This kind of high power ev charger consists of one power unit and 2 charge posts.
It's a high power EV charger to charge any CCS Compatible eBus or eVehicles with 350kw, 500A max.
scu feature icon
Compatible car brands
BMW, Volkswagen, GM, Porsche, Audi, Peugeot, Citroen, Kia, Renault, Daimler, Mercedes, Jaguar
scu feature icon
Feature
HPC charger supports CCS connector up to 500A liquid-cooled cables Reliable, robust, modular hardware Simple, quick and easy installation Daylight readable touch screen display RFID authorization
scu feature icon
Application
Public operations such as highway rest stops, petrol stations, airport etc. Private operations such as EV dealers, EV fleets etc.
High Power Charger types
HPC Power Unit
Configuration: one power unit + 2 charge post
Display: 10'' TFT Color screen
Communication Protocols: OCPP 1.6J
scu_hpc_dispenser_500A_outlet
HPC Dispenser 500A/outlet
HPC Dispenser 500A/outlet
Specifications of HPC Charger
|
AC Input for the DC Output |
Power connection |
3P + N + PE |
|
Voltage range |
400 Vac ± 20 % |
|
|
Frequency |
50 Hz or 60 Hz |
|
|
Overall efficiency |
95% |
|
|
DC Output |
Voltage |
150Vdc to 1000Vdc |
|
Max Current |
500A |
|
|
Nominal Power |
350kW |
|
|
others |
DC-Interface |
CCS 2 |
|
RFID system |
ISO/IEC14443A/B, Mifare; Optional: FeliCa™ 1, NFC reader mode, ISO/IEC15693, Calypso, Legic |
|
|
Network connection |
Standard configuration: LAN Interface; Support 2G/3G/4G/Wi-Fi modem |
|
|
Communication Protocols |
OCPP 1.6J |
|
|
Operating temperature |
-35ºC-60ºC ( -20ºC to -30ºC, heating required) |
|
|
Storage Temperature |
-40 ºC to +70 ºC |
|
|
Operating humidity |
≤95% non-condensing |
|
|
Protection degree |
IP54 , IK10 |
As a reliable uninterruptible power supply company, we have types of related products for sale, if you have needs, please contact us.
Personne à contacter : powercn scu, +31 1 85 90 37 62
