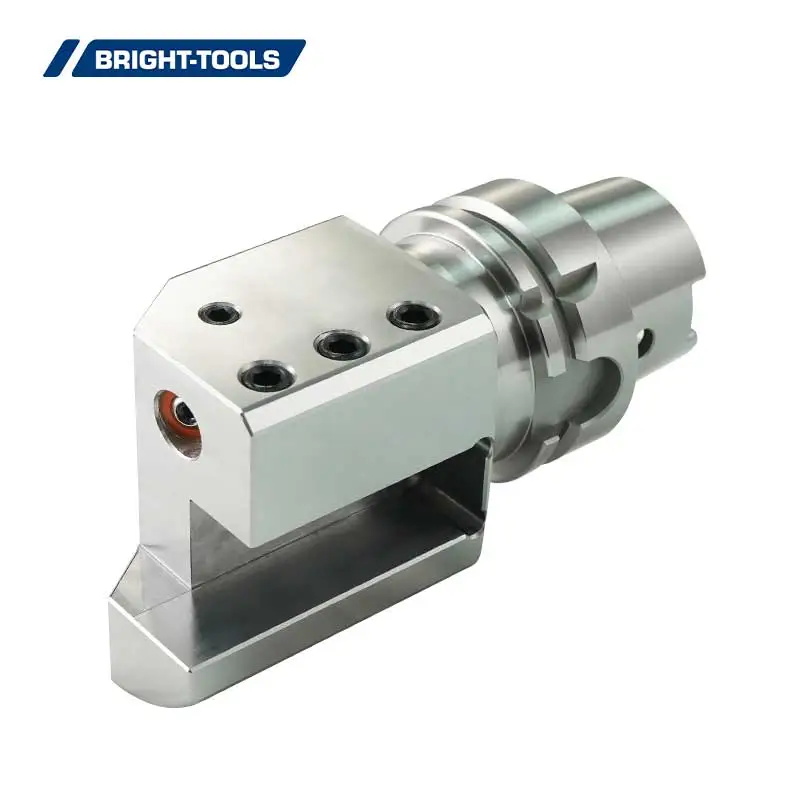

HSK･T Turning Tools for External and Cut-off
SBV facing turning tool holders are for external turning and cutting-off operation, with an adjustable cooling nozzle with internal thread. Due to its support design, it is with high rigidity. SBV is for one-direction metal lathe facing tool holders, for double directions, please choose the SBVD line.
TECHNICAL DRAWING OF HSK･T TURNING TOOLS FOR EXTERNAL AND CUT-OFF
SPECIFICATION OF HSK･T TURNING TOOLS FOR EXTERNAL AND CUT-OFF
|
Size |
L |
L1 |
L2 |
B1 |
B2 |
B3 |
H1 |
H2 |
H3 |
G |
Kg |
|
HSK50T-SBV2020R-105 |
105 |
60 |
15 |
20 |
25 |
43.5 |
25 |
25 |
5 |
M10 |
2 |
|
HSK50T-SBV2020L-105 |
105 |
60 |
15 |
20 |
25 |
43.5 |
25 |
25 |
5 |
M10 |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HSK63T-SBV2020R-105 |
105 |
60 |
15 |
20 |
32 |
43.5 |
33 |
32 |
13 |
M10 |
2.7 |
|
HSK63T-SBV2020L-105 |
105 |
60 |
15 |
20 |
32 |
43.5 |
33 |
32 |
13 |
M10 |
2.7 |
|
HSK63T-SBV2525R-115 |
115 |
70 |
20 |
25 |
32 |
45 |
30 |
30 |
5 |
M12 |
2.9 |
|
HSK63T-SBV2525L-115 |
115 |
70 |
20 |
25 |
32 |
45 |
30 |
30 |
5 |
M12 |
2.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HSK100T-SBV2525R-160 |
160 |
110 |
20 |
25 |
37 |
59 |
48 |
43 |
23 |
M12 |
8.5 |
|
HSK100T-SBV2525L-160 |
160 |
110 |
20 |
25 |
37 |
59 |
48 |
43 |
23 |
M12 |
8.5 |
|
HSK100T-SBV3232R-160 |
160 |
110 |
20 |
32 |
40 |
68.5 |
45 |
43 |
15 |
M14 |
9 |
|
HSK100T-SBV3232L-160 |
160 |
110 |
20 |
32 |
40 |
68.5 |
45 |
43 |
15 |
M14 |
9 |
For more information about china tool holder, please feel free to contact us!
