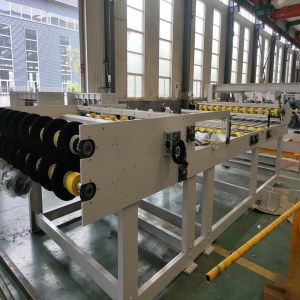

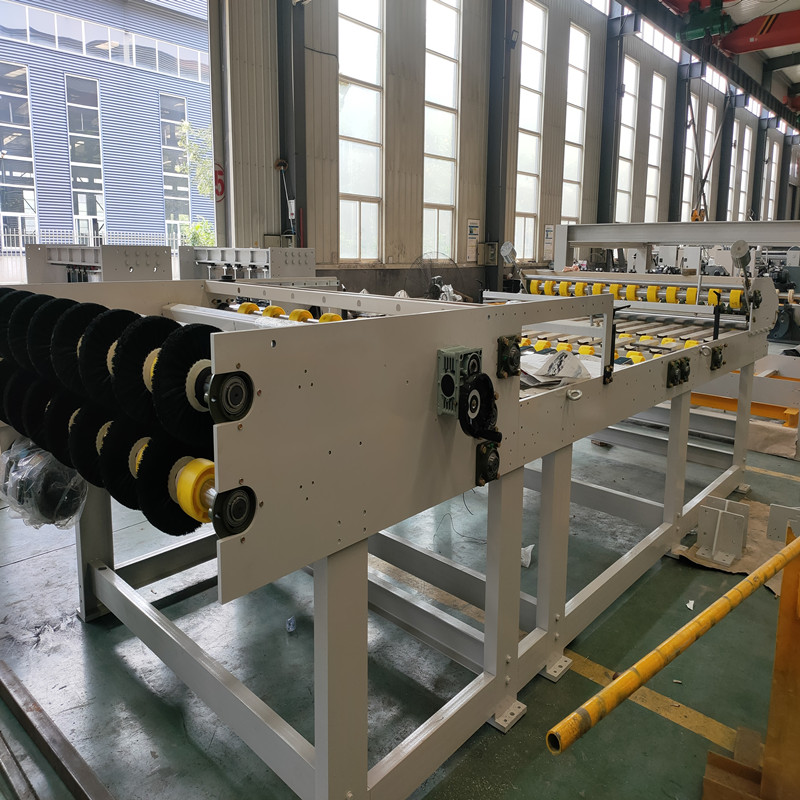

Huatao Automatic Stacker

Huatao Group - Corrugator Belt & Spare Parts

Web: www.htwirebelt.com www(dot)htwirebelt.com

Email: maple@huataogroup.com maple(at)huataogroup.com

Tel: 0086 133 8311 0583

WhatsApp: 0086 133 8311 0583

Automatic Stacker available breadth: 1400-2200mm

Specification:

Frequency conversion motor auto down stacker

Applicable to be production line whose max speed is 180m/min

Max sheet length: 3500mm, max stacking height: 1500mm

Connected with production management system, it can read order and change order, which make the orders apart correct and fast. it also can work by itself

Stacking of multi orders

Conveyer belt was separated to be 4 sections, driven by ac frequency conversion motor, running synchronized with the production line, it brings the suitable stack proportion according to the sheet length, which make paper board stack in good order

Transducer control the frequency conversion motor to drive the roller running，speed up and down stably, board come out easily，hard to be overturn

Transducer control the brake motor to drive the elevator，with counterbalance，speed up and down stably, speed counterchanges reasonably, make stacking more free and get rid of the paper board crease, improved the life of machine

Rolls forms close, and lift with elevator, to reduce the waste
