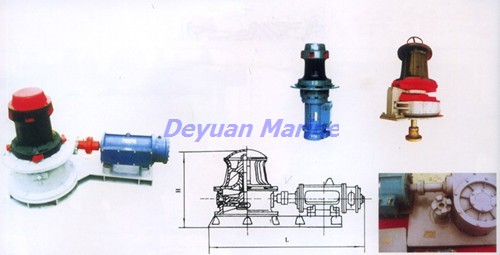

Hydraulic capstan

name

Chain Dia.

(mm)

Working load(kn)

Working speed(m/min)

Warping speed(m/min)

Wire dia

(mm)

Electric

(KW)

Hydraulic

(kw)

Φ12.5/14Electric（hydraulic) anchor and rope capstan

12.5/14

5.9/7.4

≥12

5

Φ11

3/1.2

4

Φ16/17.5Electric（hydraulic) anchor and rope capstan

16/17.5

10.9/13.0

≥12

8

Φ13

4.3/1.7

7.5

Φ19/22Electric（hydraulic) anchor and rope capstan

19/22

15.3/20.6

≥12

10

Φ13

6/2.5

11

Φ24/26Electric（hydraulic) anchor and rope capstan

24/26

24.5/28.7

≥12

20

Φ15

7.5/7.5/5

11

Φ28Electric（hydraulic) anchor and rope capstan

28

33.3

≥12

30

Φ17.5

11/11/7.5

15

Φ30/32

Electric（hydraulic) anchor and rope capstan

30/32

38.3/43.5

≥12

30

Φ17.5

16/16/11

15

Φ34/36

Electric（hydraulic) anchor and rope capstan

34/36

49.1/55.1

≥12

30

Φ17.5

16/16/11

18.5

Φ38/40

Electric（hydraulic) anchor and rope capstan

38/40

61.4/68

≥12

50

Φ20.5

22/22/16

30

Φ42/44

Electric（hydraulic) anchor and rope capstan

42/44

75/82.3

≥12

50

Φ20.5

22/22/16

30
