Hydraulic Liner Hanger Landing Collar
Quantité : 500000tons Prix : $5-$200000

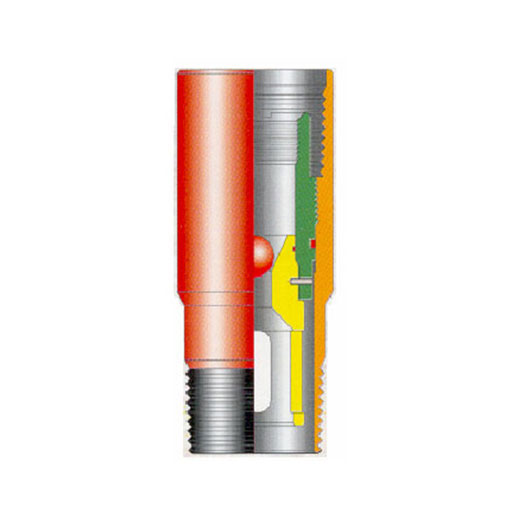

The landing collar comprises housing, ball seat and latch. The latch holds ball seat through pins. After the hanger is set, pressure is applied to release the ball seat.
The Saigao Completions' hydraulic landing collar is run in conjunction with our sentinel liner hanger product line to set the hydraulic hanger prior to your cement job. Once the hanger is set, internal pressure is raised and the sleeve in the HLC shears, re-establishing a flow path for the cement job. The Saigao HLC is also an integral plug landing collar for our liner wiper plugs, ensuring latch down success and pressure integrity of the plug bump.
Features of Hydraulic Liner Hanger Landing Collar
Combination of plug with latch provides efficient seal which can check back pressure.
The materials of inner sleeves allow easy drill out.
Technical Parameters of Hydraulic Liner Hanger Landing Collar
|
Specifications, mm |
Φ177.8 |
Φ139.7 |
Φ127.0 |
Φ114.3 |
Φ101.6 |
Φ88.9 |
|
Sealing capacity, MPa |
25 |
25 |
25 |
25 |
25 |
25 |
|
Pressure of Shearing, MPa |
16~17 |
16~17 |
16~17 |
16~17 |
16~17 |
16~17 |
|
Ball Sizes, mm |
S Φ45 |
S Φ45 |
S Φ36 |
S Φ36 |
S Φ30 |
S Φ30 |
SAIGAO GROUP, as an excellent oil well equipment manufacturers, offers a wide range of oilfield cementing tools for you to choose from.
