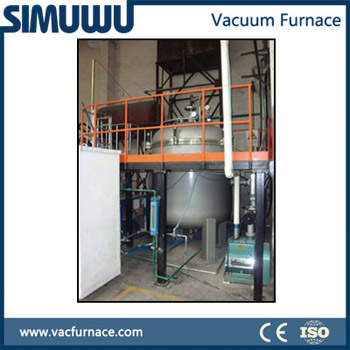

Hydrogen vacuum sintering furnace
| Main technical data of Hydrogen vacuum sintering furnace | ||||||||
| Model |
Effective working Dimension (mm) |
Max temperature (℃) |
Ultimate pressure (pa) |
Pressure rising rate(pa/h) |
IF power (KW) |
IF voltage (V) |
IF Frequency (HZ) |
Temperature Uniformity(℃) |
| RHIS-160 | 350×500 | 2400 | 10-1 | 0.67 | 160 | 300 | 2000 | ±10 |
| RHIS-250 | 560×800 | 2400 | 10-1 | 0.67 | 250 | 350 | 2000 | ±10 |
| RHIS-350 | 650×1200 | 2400 | 10-1 | 0.67 | 350 | 450 | 1500 | ±10 |
| RHIS-500 | 800×1500 | 2400 | 10-1 | 0.67 | 500 | 500 | 1500 | ±15 |
| RHIS-750 | 900×1700 | 2400 | 10-1 | 0.67 | 750 | 750 | 1000 | ±15 |
Hydrogen vacuum sintering furnace is filling the hydrogen protection after evacuating, by using the principle of intermediate frequency induction heating, make the tungsten crucible inside the coil generate heat, then through the thermal conduction to the sintering material, it is applied to the powder molding sintering of hard metal, such as tungsten, molybdenum, titanium and its alloys. The safety explosion-proof device, improve the safety of the equipment, realize high voltage with low current, and get energy-saving effect. Thermal insulation layer using special structural design, thus improve the reliability of the equipment.
Automatic temperature control system provides multiple thermal curve for storage, select or recycle, records and outputs sintering process.
Using IGBT medium frequency power supply with a stable output, high efficiency, etc. features.
