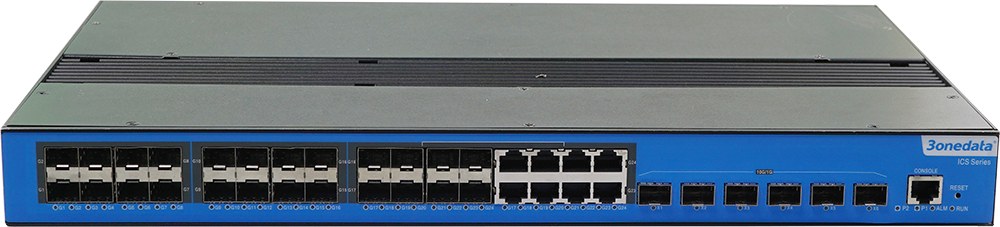

ICS5530-16GS8GC6XS-2P220

30-port Gigabit/10Gigabit Layer 3 Managed Industrial Ethernet Switch

Support 6 10Gigabit fiber ports (SFP slots), 8 Gigabit Combo (SFP slots or RJ45), 16 Gigabit SFP slots

Adopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms

Support AC dual power supply, input voltage: 100~240VAC/DC

Support -40~75℃ wide operating temperature range

Overview

ICS5530-16GS8GC6XS-2P220 is 30 port gigabit switch/10 Gigabit layer 3 managed industrial Ethernet switch. It provides Gigabit SFP ports, Gigabit fiber and copper Combo ports and 10 Gigabit SFP slots. It adopts 1U rack mounting. Abundant numbers of interfaces and bandwidth of Gigabit/10Gigabit combination to meet the application requirements of large-scale industrial network.

Network management system supports a variety of network protocols and industry standards, such as ARP, VRRP, RIP, OSPF, BGP, STP/RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP static multicast function, LLDP, port trunking, port mirror, etc. It has perfect management functions, supporting port configuration, port statistics, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

This product supports dual AC power supply. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.

Features

SNMPv1/v2c/v3 is used for network management of various levels

RMON can be used for efficient and flexible network monitoring

Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

QoS supports real-time traffic classification and priority setting

LLDP can achieve automatic topology discovery, which is convenient for visual management

DHCP server and DHCP client could be used for allocating IP address of different strategies

File management is convenient for the device rapid configuration and online upgrading

Log management records the information of booting, operation and connection

Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status

Port statistics can be used for the port real time traffic statistics

ARP could be used for MAC address resolution

User password can conduct user hierarchical management to improve the device management security

ACL can enhance network flexibility and security

Relay alarm is convenient for troubleshooting of construction site

Storm suppression can restrain broadcast, unknown multicast and unicast

TELNET configuration and HTTPS configuration can guarantee the access security of data

VLAN is used for simplifying network planning

Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization

PIM-DM/PIM-SM/PIM-SSM, IGMP Snooping, GMRP and static multicast can be used for filtering multicast traffic to save the network bandwidth

Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status

Port isolation could achieve port isolation in the same VLAN and save Vlan resources

SW-Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm

Ping, Traceroute, Port Loopback and DDM could achieve network diagnosis and troubleshooting

VRRP, RIP, OSPF, BGP could achieve dynamic routing configuration

With high reliability and stability, ERPS could avoid broadcast storm caused by data loopback

Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback
