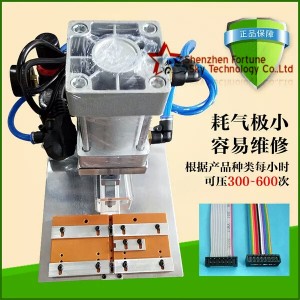

IDC connector crimping machine
IDC Connector Crimping Machine
The clamp of IDC connector crimping machine is adjustable, there are two kinds of specifications, the one with 1.0 maximum spacing can crimp 64P, the one with 1.27 maximum spacing can crimp 50P, 1.0 or 1.27 spacing fixture will be sent with machine at ramdon, if two specifications of fixtures both needed, will be chargeable in addition.
Characteristic description:
1 for the 8P-64P IDC connector crimping machine take place of hand pliers, output of high efficiency, stable quality and simple operation.
2 minimum gas consumption, low failure rate, easy maintenance.
3 with bakelite base use, simple operation, abrasion resistance, high precision.
4 suitable for crimping cable with IDC products.
5 automatic crimping the product which is feeded in, finalization and the cylinder reset, easy to operate.
6 according to the product type can be pressed 300-600 times per hour.
7 addopt 6-8kg pressure, 220V power supply
8 the body all the use of steel for operation, solid and durable, external chrome, beautiful without rust
9 Distribution a set of bakelite crimping adjustable block 8-40P (OEM is acceptable.)
Technical Parameters:
Model No.: FSHS-50
Voltage AC220V
Weight 14KG
Appearance size 250x200x330mm
Press P number 4-40P a fixture /40-64P a fixture
