IES3000 Series

IES3000 Series

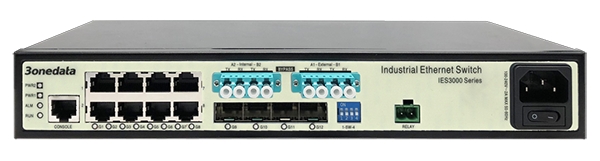

Industrial 12-port Full Gigabit Managed Bypass Industrial Ethernet Switches

Support 8 gigabit copper ports (Optional PoE), 4 gigabit SFP slots and 2 Bypass

Support ERPS, RSTP and STP ring network protocol

Support SW-Ring patented technology, automatic recovery time of network failure < 20ms

Support SNMP and IPv6 management

Support dual power supply redundancy, optional AC/DC power supply

Support -40~75℃ wide operating temperature range

IES3000 series is industrial 12-port full gigabit managed ethernet bypass switch. This product provides gigabit copper port (optional PoE), gigabit SFP slot and 2 Bypass. It adopts rack mounting to meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as ERPS, STP/RSTP/MSTP ring network protocol, 802.1Q VLAN, QoS, IGMP Static Multicast, LLDP, Port Trunking, Port Mirroring, IPv6 Management, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, 802.1X Authentication, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

There are two independent power supply circuits inside the device, which can ensure that it can operate normally when one fails. DIP switch can achieve restoring factory defaults setting. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.

Features and Benefits

SNMPv1/v2c/v3 is used for network management of various levels

RMON can be used for efficient and flexible network monitoring

Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

QoS supports real-time traffic classification and priority setting

LLDP can achieve automatic topology discovery, which is convenient for visual management

DHCP server and client can be used for distributing IP address

File management is convenient for the device rapid configuration and online upgrading

Log management has recorded booting, operation and connection information

SYSLOG supports transmitting system log information to remote server

Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status

Port statistics can be used for port real-time traffic statistics

Support Console/Telnet/WEB management method

User password can conduct user hierarchical management to improve the device management security

Anti-attack control, ACL and 802.1X authentication can enhance the network flexibility and security

Relay alarm is convenient for troubleshooting of construction site

Storm suppression can restrain the broadcast, unknown multicast and unknown unicast

TELNET and HTTPS configuration can guarantee the data access security

Port trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization

IGMP Snooping, GMRP and static multicast can be used for filtering multicast traffic to save the network bandwidth

Support Port Isolation in the same VLAN to save Vlan resource

ERPS and STP/RSTP/MSTP can achieve network redundancy, preventing network storm and broadcast storm

IPV6 can solve the problem of limited internet address resources and the obstacle of multiple device linking to the internet

Network Diagnosis and Troubleshooting can be conducted via Ping, Traceroute and Port Loopback
