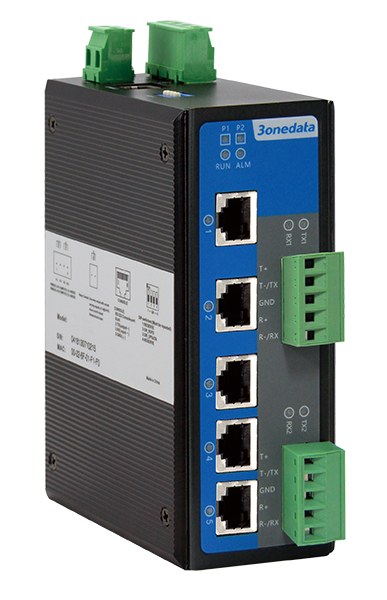

IES615-2DI Series

Layer 2 Managed Industrial Ethernet Switch with 2 3IN1 Isolated Serial Ports

Support 2 3IN1 serial ports, 5 100M fiber or copper ports optional

Adopt SW-Ring patent technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms

Support multiple serial port work modes such as TCP Client, TCP Server, UDP, TcpAuto, advanced TCP Server and advanced UDP

Support redundant 12~48VDC power supply input, non-polarity, reverse connection protection

Support – 40~75℃ wide operating temperature range

Overview

IES615-2DI series are layer 2 managed industrial Ethernet switches with 2 3IN1 serial ports and 5 Ethernet ports. This series include three types of products and provide multiple ports, such as 100M fiber ports, copper ports and 3IN1 serial ports. They also support DIN-Rail mounting and wall mounting, which can meet the requirements of different application scenes.

Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections and multiple operating modes like TCP Server. Moreover, it supports CLI, WEB, Telnet, SNMP and other access modes. It can provide users with good experience via friendly design of network management system interface, simple and convenient operation.

DIP switch can instantly restore factory defaults and achieve product upgrading. When the link failure of power supply or port occurs, ALARM indicator will light up and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.

Features and Benefits

SNMPv1/v2c is used for network management of various levels

Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging

QoS supports real-time traffic classification and priority setting

File management is convenient for rapid configuration and online upgrade of the device

Port statistics can be used for the port real time traffic statistics

User password can conduct user hierarchical management to improve the device administrative security

Relay alarm is convenient for troubleshooting of construction site

VLAN can simplify the network planning

Port trunking can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization

Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status

Static multicast can be used for filtering multicast traffic to save the network bandwidth

SW-Ring and RSTP can achieve network redundancy, preventing network storm

Support multiple operating modes of serial port: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
