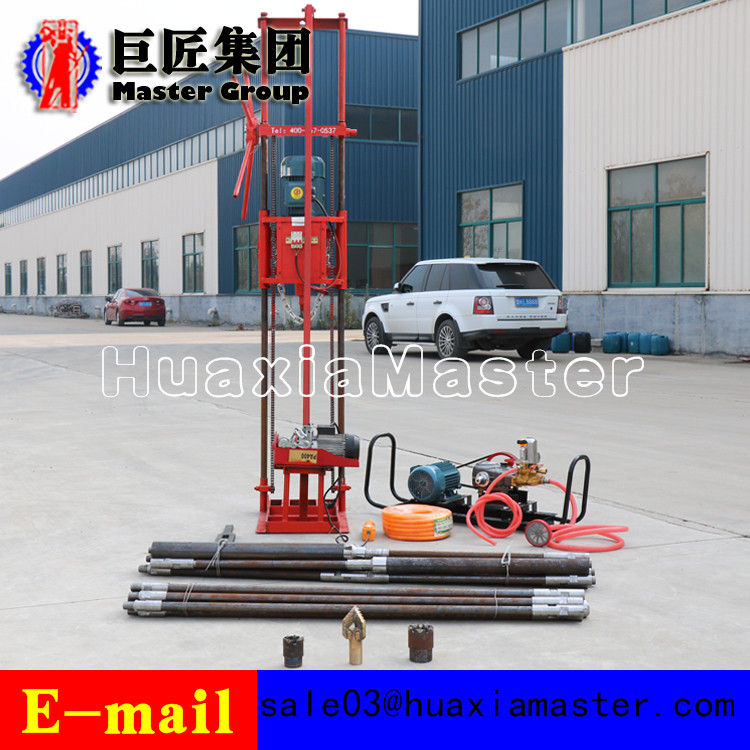

In StockQZ-2DS Three Phase Electric Core Drilling Rig With Winch
Quantité : 1 SET Prix : $ 4000
The brief introductions of QZ-2DS three phase core drilling rig
QZ-2DS type portable sampling drill is used for geological industrial and civil buildings, bridges, railway, highway, hydro-power industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole and so on.
QZ-2DS drilling rig has the following features: compact structure, small volume, light weight, two gears, easy to move.
2.Specifications of QZ-2DS three phase core drilling rig
|
QZ-2DS drilling rig |
||
|
End hole diameter (mm) |
32-110 |
|
|
|
soil 110：10m soil 91：10-15m stone 91：5-10m stone 75：10-15m stone 60：15-20m stone 46：20-30m |
|
|
Drilling pipe diameter (mm) |
30 |
|
|
|
power |
4kw |
|
model |
YX3-112M-4 |
|
|
Dimension（l*w*h） |
600*650*2330 |
|
|
Weight（kg） |
110 |
|
3. Configuration List of QZ-2DS drilling rig
|
Item |
Parameter |
Unit |
Quantity |
|
QZ-2DS |
set |
1 |
|
|
Drilling pipe |
30*1500 |
pc |
6 |
|
Drilling pipe |
30*800 |
pc |
14 |
|
Pipe joint |
38 |
pc |
20 |
|
Reducing nipple |
58/38 |
pc |
2 |
|
Core barrel |
58*800 |
pc |
1 |
|
Core barrel |
58*1500 |
pc |
1 |
|
Alloy bit |
60 |
pc |
1 |
|
Diamond bit |
60 |
pc |
1 |
|
Reducing nipple |
73/38 |
pc |
2 |
|
Core barrel |
73*800 |
pc |
1 |
|
75 |
pc |
1 |
|
|
Diamond bit |
75 |
pc |
1 |
|
Three-wing bit |
75 |
pc |
1 |
|
Safety clamp |
|
pc |
1 |
|
Water seal |
Y 30*50*10 |
pc |
4 |
|
Oil seal |
30*50*10 |
pc |
1 |
|
Pipe wrench |
18 |
pc |
2 |
|
Monkey wrench |
|
pc |
1 |
|
Shaft snap ring clamp |
|
pc |
1 |
|
Hole snap ring clamp |
|
pc |
1 |
|
Pliers |
|
Pair |
1 |
|
Cross screwdriver |
|
pc |
1 |
|
Hex wrench |
|
pc |
1 |
|
Control wheel |
|
pc |
1 |
If you need a wooden base, a high pressure pump and a high pressure
Shandong Master Machinery Group Co.,Ltd.
Sales Manager: Kevin
Mobile Phone: 0086-18865479507
Mail: sale03@huaxiamaster.com
WeChat: 18865479507
QQ: 256618593
TEL: 0086-537-3860909
Skype: 8618865479607
Whatspp: 008618865479507
Website: http://www.sdjujiang.com
