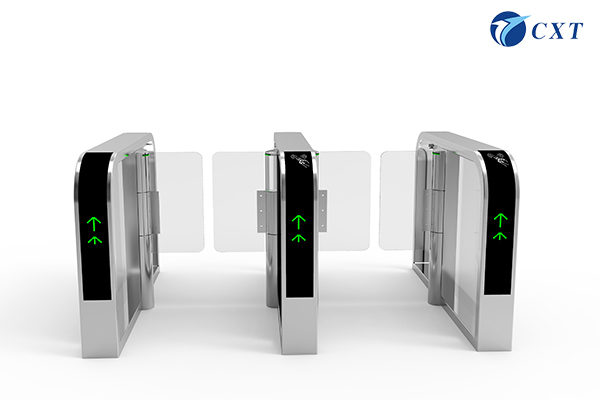

Inclined Surface Speed Gate

Core Features of Inclined Surface Speed Gate:

• Adopt Brush-less motor, it has a longer lifespan
• Fast & Stable Operation
• Innovative and patented design both in appearance and inner structure
• Step-less anti-collision tech for better effect of crashproof.
• Superego protection algorithm system and mechanical design.
• Merits for smooth running, speed adjustable and low wear.
• Module structure design for easier maintenance and parts replacement.
• Lane size can be set and has a good anti-pinch performance to protect passengers.
• The installation position of direction indicator can be adjusted, The pattern of direction indicator can be customized
• All-round Personal Safety Protection
  The deluxe speedtype Swing turnstile opens automatically to evaluate people in the event of an emergency, such as fire, power failure. etc.Infrared and mechanical anti-clamping functions provide double protection.

Inclined Surface Speed Gate Technical Parameter:

• Product Model: CXT-BT115
• Housing material: SUS304 frame structure
• work-craft Processing: Apply with Laser, bend, weld, polish and etc.
• Standard Dimension: L1600mm*W160mm*H1000mm
• Weight: per different models
• Arm length: 300mm(adjustable)
• Lane Width: 650mm(adjustable)
• Voltage: AC220±10V,50HZ (notify if you have special requirement)
• Motor: 24V/30W Brush-less Motor
• LED guider: High brightness traffic status indication (Arrow flashing when passing)
• Working environment: Indoor and Outdoor
• Suitable Temperature: -40℃ ～ 80℃
• Suitable humidity: 5%-90%
• Emergency measure: Arm drops when power off
• Gate opening/closing time: 0.5s-2s (adjustable)
• Passing speed: 35-45people/minute
• Communication interface: RS485/TCP/IP
