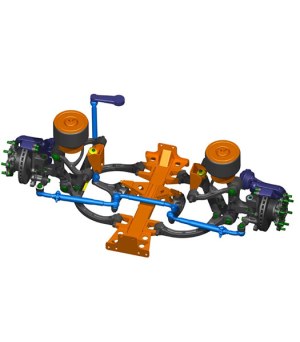

Independent Air Suspension for 7-10m Bus System
Prix : ￥3000-￥20000
AFD050/055 series independent air bag suspension wholesale, high stiffness double A-arm structure, wide airbag span, low unsprung mass, small dynamic load impact, good vehicle ride comfort, good tire grounding.
This air suspension bus system is available to realize 3-stage and 2-stage steering transmission mechanism according to the requirements, which can meet the needs of large wheel angle, and has good steering performance. This independent air bag suspension is suitable for a channel width of 650-900mm and a maximum ground clearance of 350mm.
AFD050/055 series independent air suspension system can be matched with 19.5" and 22.5" disc brakes, which is more adaptable.
It is possible to install the United States ConMet integral oil-lubricated bearings, large heat capacity, wheel hub bearings are not easy to burn, this series of independent suspension systems can be universally matched with the city bus system and tourist vehicles.
Main Technical Parameters of Rear Suspension
|
Model |
AFD 050/055series |
|
Suspension Height |
270mm |
|
Rated Load |
4500～5500KG |
|
Axle Travel |
170mm（+85/-85) |
|
Brake Specifications |
19.5"/22.5" |
|
Tire Specifications |
265/70 R19.5 （275/80 R22.5） |
|
Inner and Outer Wheel Corners |
AFD050：50˚/39.2˚ |
|
AFD055：48˚/39˚ |
|
|
Front Axle Positioning Parameters |
Toe: （0-2）mm |
|
Caster angle：3.5˚±30′ |
|
|
Kingpin inclination：8.5˚±30′ |
|
|
Camber angle：0.5˚±20′ |
There are many air suspension manufacturers, but we are one of the best choices for you.
